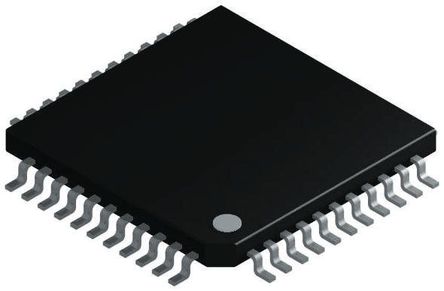

AD7841BSZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC639353
Category:
Digital to Analog, DAC IC
Package:
QFP-44
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD7841BSZ Digital to Analog Converter, 14Bit, 32KSPS, Parallel, 4.75V to 5.25V, ± 13.5V to ± 16.5V, QFP
Stock Locations:
Availability:
243 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 58.02

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD7841BSZ is an octal 14-bit parallel input voltage-output Digital-to-analog Converter (DAC) with output voltages with a full-scale range of ±10V from reference voltages of ±5V. It accepts 14-bit parallel loaded data from the external bus into one of the input registers under the control of the WR, CS and DAC channel address pins A0-A2. The DAC outputs are updated on reception of new data into the DAC registers. All the outputs may be updated simultaneously by taking the LDAC input low. The DAC output is buffered with a gain-of-two amplifier into which an external DAC offset voltage can be inserted via the DUTGNDx pins.
Voltage outputs
Offset adjust
Clear function to user-defined voltage

Show

AD7841BSZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	44 Pin
Case/Package	QFP-44
Number of Outputs	8 Output
Supply Current	10 mA
Number of Channels	8 Channel
Number of Positions	44 Position
Number of Bits	14 Bit
Power Dissipation	303 mW
Sample Rate	32 ksps
Resolution (Bits)	14.0 Bit
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	303 mW
Number of DACs	8 DAC
Supply Voltage (Max)	16.5 V
Supply Voltage (Min)	13.5 V
	Show
Size-Length	10 mm
Size-Width	10 mm
Size-Height	2 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2017/07/07
ECCN Code	EAR99
