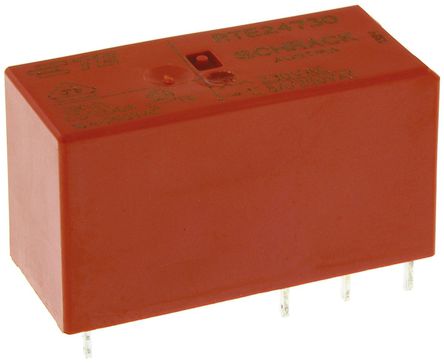

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The RTE24730 is a Power PCB Relay with AC coil. This RT2-series relay has 2-form-C (1CO) AgNi 90/10 contact with pinning 5mm, wash tight version. Typical applications such as boiler control, timers, garage door control, POS automation, interface modules.
PCB terminal type
Monostable coil magnetic system
Reinforced insulation
-40 to 85°C Ambient temperature range

Show

RTE24730 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP
Current Rating	8 A
Contacts Type	DPDT
voltage rating	34.5 V
Contact Current Rating	8 A
Coil Voltage	230 V
Coil Voltage (AC)	230 V
Coil Resistance	32.5 kΩ
Current Rating (Max)	8 A
Coil Power	0.74 VA
Input Power (Max)	2 KVA
Switching Current (Max)	8 A
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	230 V
	Show
Size-Length	29 mm
Size-Width	12.7 mm
Size-Height	15.7 mm
Contact Material	Silver Nickel
Operating Temperature	-40℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ELV Compliant	Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
HTS Code	8536410050
ECCN Code	EAR99
