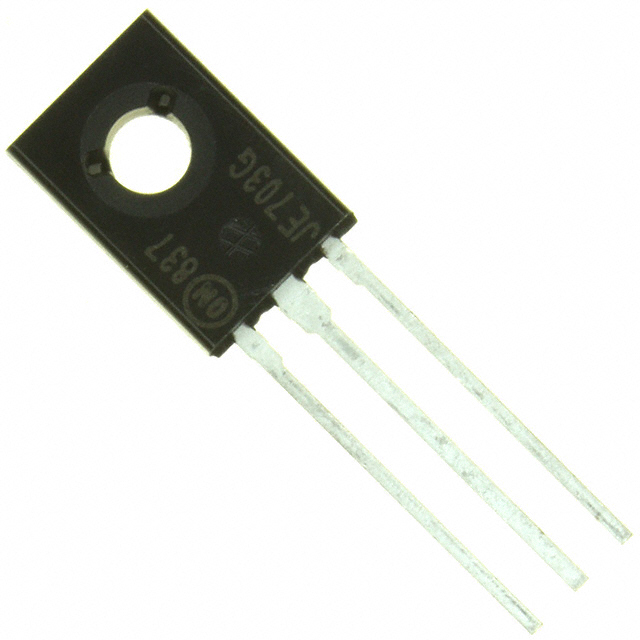

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

BD787 − NPN, BD788 − PNP
4 AMPERES POWER TRANSISTORS COMPLEMENTARY SILICON 60 VOLTS, 15 WATTS
These devices are designed for lower power audio amplifier and low current, high−speed switching applications.
Features
•Low Collector−Emitter Sustaining Voltage − VCEO(sus)60 Vdc (Min)
•High Current−Gain − Bandwidth Product fT= 50 MHz (Min) @ IC= 100 mAdc
•Collector−Emitter Saturation Voltage Specified at 0.5, 1.0, 2.0 and 4.0 Adc

Show

BD787 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	TO-126-3
Voltage Rating (DC)	60.0 V
Current Rating	4.00 A
Polarity	NPN
Breakdown Voltage (Collector to Emitter)	60 V
Continuous Collector Current	4A
hFE Min	40 @200mA, 3V
hFE Max	250
Input Power (Max)	15 W
	Show
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Bulk
Minimum Packing Quantity	500
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
