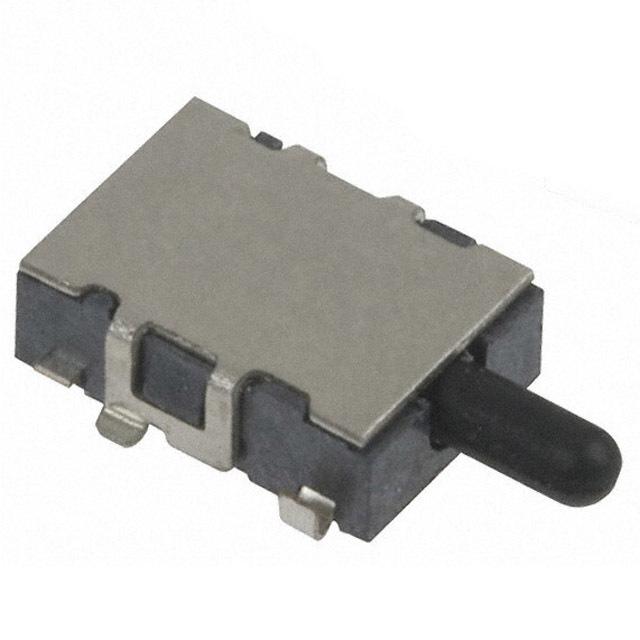

Image is for your reference only,please check specifications for details

SDS001 - C&K Components
Manufacturer:
C&K Components
ManyChip's Part#:
MC5635300
Category:
Switch
Package:
100
Datasheet:
Datasheet 3D Model
Description:
C & K COMPONENTS SDS001 Detector Switch, SDS Series, SPST-NO, Solder, 100mA, 12V, 5.7mm
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SDS001 is a Side Actuated Detect Switch with solder terminal. The SDS series switch has silver clad phosphor bronze contact, silver plate phosphor bronze terminal and glass filled LCP actuator.
Low actuation force (75g maximum)
2mm overtravel
100mR Maximum initial contact resistance

Show

SDS001 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	100
Contact Plating	Silver
Voltage Rating (DC)	12 V
Current Rating	100mA (DC)
Insulation Resistance	100 MΩ
Orientation	Right Angle
Contacts Type	SPST-NO
Contact Resistance	100 mΩ
Current Rating (Max)	0.1A @12VDC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating (DC Max)	12 V
Maximum Contact Resistance (Max)	100 mΩ
	Show
Size-Length	4 mm
Size-Width	8.2 mm
Size-Height	5.7 mm
Contact Material	Gold
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
HTS Code	8536509065
ECCN Code	EAR99
