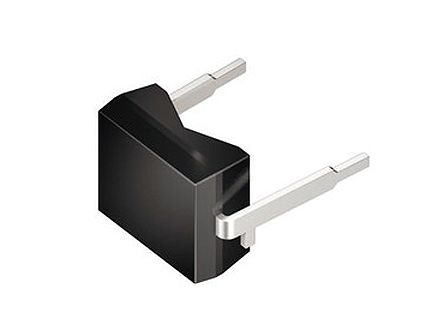

Image is for your reference only,please check specifications for details
- BP104 - Vishay Intertechnology
-
Manufacturer:Vishay Intertechnology
-
ManyChip's Part#:MC13440000
-
Category:Optocouplers/Optoisolators
-
Package:DIP-2
-
Datasheet:Datasheet 3D Model
-
Description:950 нм, 100 нс, угол обзора 65°, полупроводниковая ФПИ-фотодиод с высокой светочувствительностью для используемых в TO-5 корпусах, изготовлена из кремния, имеет плоский пластиковый корпус и фильтр для блокировки дневного света. Диапазон частот фильтра соответствует излучению в диапазоне 900–950 нм. * Высокая светочувствительность * Быстрые время отклика * Угол полупроводниковой ФПИ-фотодиода составляет ±65°
-
Stock Locations:
-
Availability:2,341 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.44
Updated at 31/10/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- BP104 представляет собой кремниевый PIN-фотодиод с высоким быстродействием и высокой радиационной чувствительностью в миниатюрном плоском пластиковом корпусе с верхним обзором и фильтром блокировки дневного света. Полоса пропускания фильтра согласована с ИК-излучателями в диапазоне 900–950 нм.
- Высокая радиационная чувствительность
- Быстрое время отклика
- Угол половинной чувствительности ±65°
BP104 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Case/Package | DIP-2 |
| Capacitance | 70.0 pF |
| Breakdown Voltage | 60.0 V |
| Number of Positions | 2 Position |
| Wavelength | 950 nm |
| Viewing Angle | 130° |
| Peak Wavelength | 950 nm |
| Power Dissipation | 0.215 W |
| Rise Time | 100 ns |
| Reverse Breakdown Voltage | 60 V |
| Fall Time | 100 ns |
| Fall Time (Max) | 100 ns |
| Rise Time (Max) | 100 ns |
| Operating Temperature (Max) | 100 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 215 mW |
| Show | |
| Size-Length | 4.65 mm |
| Size-Width | 4.3 mm |
| Size-Height | 2 mm |
| Operating Temperature | -40℃ ~ 100℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
