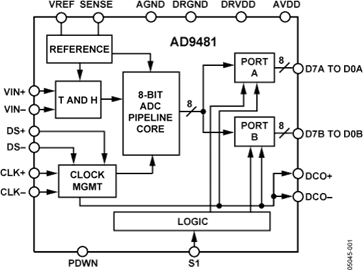

- The AD9481 is an 8-bit, monolithic analog-to-digital converter (ADC) optimized for high speed and low power consumption. Small in size and easy to use, the product operates at a 250 MSPS conversion rate, with excellent linearity and dynamic performance over its full operating range.
- To minimize system cost and power dissipation, the AD9481 includes an internal reference and track-and-hold circuit. The user only provides a 3.3 V power supply and a differential encode clock. No external reference or driver components are required for many applications.
- The digital outputs are TTL/CMOS-compatible with an option of twos complement or binary output format. The output data bits are provided in an interleaved fashion along with output clocks that simplifies data capture.
- The AD9481 is available in a Pb-free, 44-lead, surface-mount package (TQFP-44) specified over the industrial temperature range (−40°C to +85°C).
- **Product Highlights**
- 1. Superior linearity. A DNL of ±0.35 makes the AD9481 suitable for many instrumentation and measurement applications
- 2. Power-down mode. A power-down function may be exercised to bring total consumption down to 15 mW.
- 3. De-multiplexed CMOS outputs allow for easy interfacing with low cost FPGAs and standard logic.
- **Applications**
- Digital oscilloscopes
- Instrumentation and measurement
- Communications:
- Point-to-point radios
- Digital predistortion loops
- ### Features and Benefits
- DNL = ±0.35 LSB
- INL = ±0.26 LSB
- Single 3.3 V supply operation (3.0 V to 3.6 V)
- Power dissipation of 439 mW at 250 MSPS
- 1 V p-p analog input range
- |
- Internal 1.0 V reference
- Single-ended or differential analog inputs
- De-multiplexed CMOS outputs
- Power-down mode
- Clock duty cycle stabilizer
- ---|---
AD9481 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Show | |
| Product Lifecycle Status | Active |
