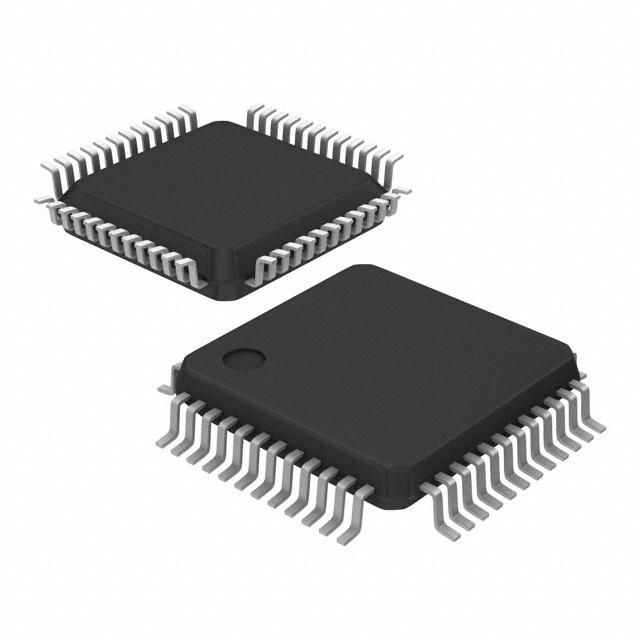

Image is for your reference only,please check specifications for details
- MSP430FE427IPM - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC14648789
-
Category:Microcontroller, MCU IC
-
Package:LQFP-64
-
Datasheet:Datasheet 3D Model
-
Description:16Bit Ultra-Low-Power Microcontroller for Energy Meters, 32KB Flash, 1024B RAM 64-LQFP -40℃ to 85℃
-
Stock Locations:
-
Availability:285 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 11.04
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TI MSP430 family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows the device to wake up from low-power modes to active mode in less than 6 µs.
- The MSP430FE42x series are microcontroller configurations with three independent 16-bit sigma-delta ADCs and an embedded signal processor core used to measure and calculate single-phase energy in both 2-wire and 3-wire configurations. Also included are a built-in 16-bit timer, 128-segment LCD drive capability, and 14 I/O pins.
- Typical applications include 2-wire and 3-wire single-phase metering including tamper-resistant meter implementations.
MSP430FE427IPM Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 64 Pin |
| Case/Package | LQFP-64 |
| Frequency | 8.4 MHz |
| Supply Voltage (DC) | 3.30 V, 3.60 V (max) |
| Clock Speed | 8.00 MHz |
| RAM Memory Size | 1K x 8 |
| Number of Bits | 16 Bit |
| FLASH Memory Size | 32 KB |
| Number of I/O Pins | 14 IO |
| Access Time | 8.40 µs |
| Core Architecture | MSP430 |
| Number of UARTs | 1 UART |
| Number of ADCs | 3 ADC |
| FRAM Memory Size | 0 B |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HK STC License | NLR |
