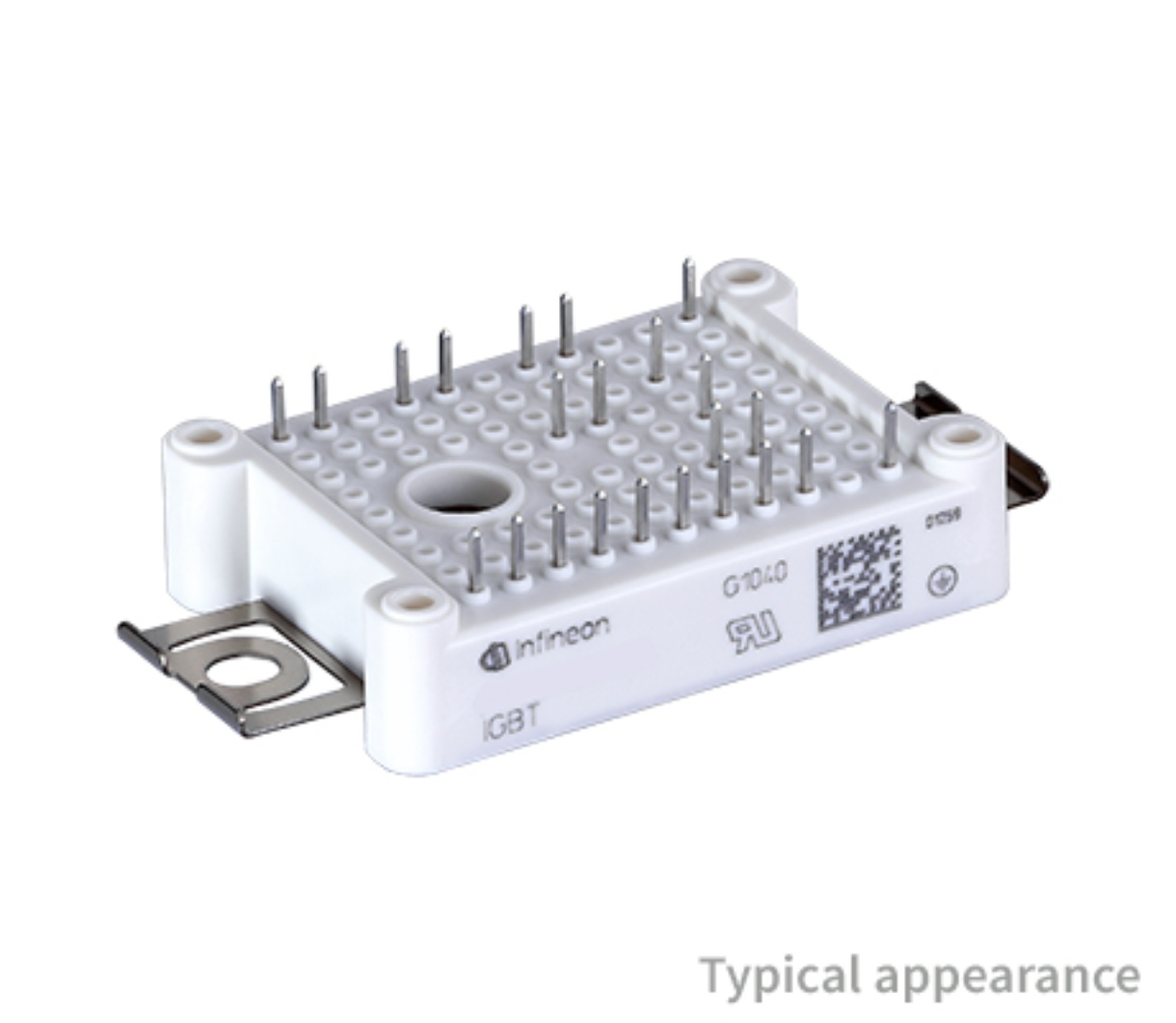

Image is for your reference only,please check specifications for details

FS30R06W1E3 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC168080603
Category:
IGBT Transistor, IGBT Module
Package:
Module
Datasheet:
Datasheet 3D Model
Description:
INFINEON FS30R06W1E3 IGBT Array & Module Transistor, Low Power, N Channel, 30A, 1.55V, 150W, 600V, Module
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

FS30R06W1E3 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw
Number of Pins	18 Pin
Case/Package	Module
Power Rating	150 W
Number of Positions	18 Position
Polarity	N-Channel
Power Dissipation	150 W
Breakdown Voltage (Collector to Emitter)	600 V
Input Capacitance (Cies)	1.65nF @25V
Input Power (Max)	150 W
Operating Temperature (Max)	150 ℃
	Show
Size-Length	62.8 mm
Size-Width	33.8 mm
Size-Height	12 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
