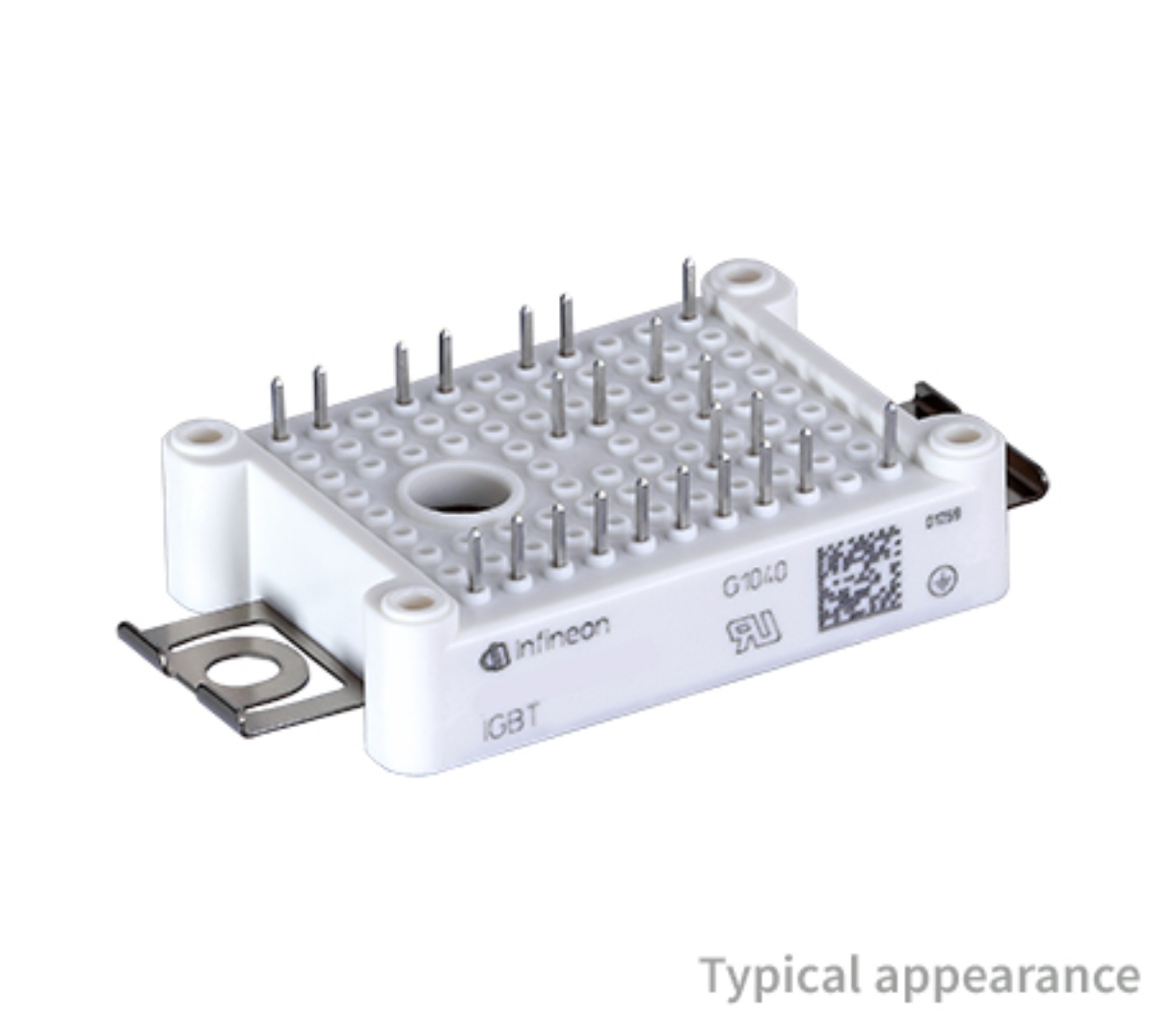

Image is for your reference only,please check specifications for details
- FS35R12W1T4 - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC114736630
-
Category:IGBT Transistor, IGBT Module
-
Package:AG-EASY1B-1
-
Datasheet:Datasheet 3D Model
-
Description:IGBT Array & Module Transistor, N Channel, 35A, 1.85V, 225W, 1.2kV, Module
-
Stock Locations:
-
Availability:284 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 56.14
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Low Switching Losses
- Trench IGBT 3
- V(CEsat) with positive Temperature Coefficient
- Low V(CEsat)
- Al(2)O(3) Substrate with Low Thermal Restistance
- Compact Design
- Solder Contact Technology
- Rugged mounting due to integrated mounting clamps
- Benefits:
- Compact module concept
- Optimized customer’s development cycle time and cost
- Configuration flexibility
FS35R12W1T4 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Screw |
| Number of Pins | 18 Pin |
| Case/Package | AG-EASY1B-1 |
| Polarity | N-Channel |
| Power Dissipation | 225 W |
| Breakdown Voltage (Collector to Emitter) | 1200 V |
| Input Capacitance (Cies) | 2nF @25V |
| Input Power (Max) | 225 W |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 225 W |
| Show | |
| Size-Length | 62.8 mm |
| Size-Width | 33.8 mm |
| Size-Height | 12 mm |
| Operating Temperature | -40℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | |
| REACH SVHC Compliance | No SVHC |
