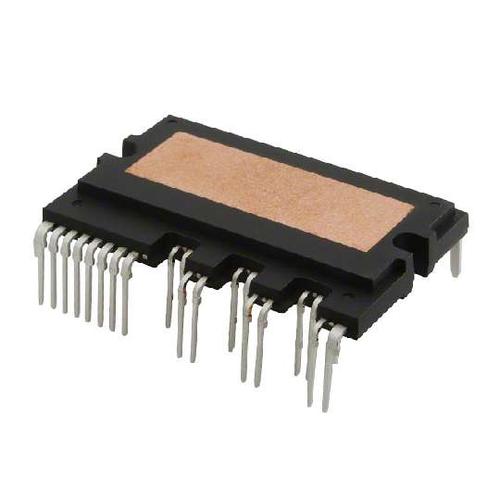

Image is for your reference only,please check specifications for details

FSBB15CH60C - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC24066003
Category:
IGBT Transistor, IGBT Module
Package:
SPM27-CC
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR FSBB15CH60C IGBT Array & Module Transistor, N Channel, 15A, 2V, 55W, 600V, SPM27-CC
Stock Locations:
Availability:
251 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 19.33

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FSBB15CH60C is a 600V Motion SPM® 3 Module provides a fully-featured, high-performance inverter output stage for AC induction, BLDC and PMSM motors. This module integrates optimized gate drive of the built-in IGBTs to minimize EMI and losses, while also providing multiple on-module protection features including undervoltage lockouts, over-current shutdown, thermal monitoring and fault reporting. The built-in, high-speed HVIC requires only a single supply voltage and translates the incoming logic-level gate inputs to the high-voltage, high-current drive signals required to properly drive the module"s robust short-circuit-rated IGBTs. Separate negative IGBT terminals are available for each phase to support the widest variety of control algorithms. This product is general usage and suitable for many different applications.
Low thermal resistance using ceramic substrate
Low-loss, short-circuit rated IGBTs
Built-in bootstrap diodes and dedicated vs. pins simplify PCB layout
Built-in NTC thermistor for temperature monitoring
Three separate open-emitter pins from low side IGBTs for three leg current sensing

Show

FSBB15CH60C Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	27 Pin
Case/Package	SPM27-CC
Number of Outputs	3 Output
Output Current	5 mA
Polarity	N-Channel
Power Dissipation	55 W
Isolation Voltage	2500 Vrms
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	55000 mW
	Show
Size-Height	5.5 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
