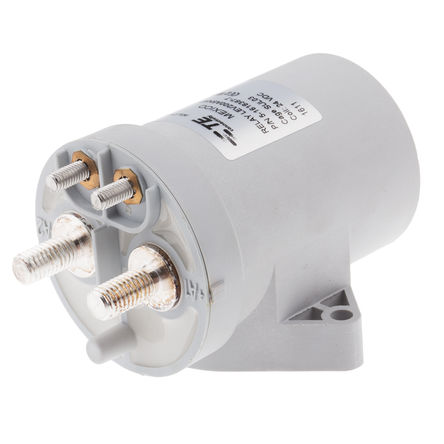

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Electromechanical Relay 24VDC 500A SPST-NO Side Mount Contactor Relay
- Product Highlights
- Contactor Type = Sealed
- LEV200 Series
- DC Actuating System
- Number of Poles = 1
- Contact Arrangement = 1 Form A, SPST-NO
LEV200A5NAF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Case/Package | - |
| Operating Voltage | 900 VDC |
| Current Rating | 500 A |
| Contacts Type | SPST-NO |
| Number of Bits | 1 Bit |
| Contact Current Rating | 500 A |
| Coil Voltage | 24 VDC |
| Coil Current | 600 mA |
| Coil Resistance | 40 Ω |
| Current Rating (Max) | 500 A |
| Coil Voltage (DC) | 24 V |
| Voltage Rating | 900 VDC |
| Show | |
| Size-Width | 77.7 mm |
| Size-Height | 94.0 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ELV Compliant | Compliant |
| HTS Code | 8536490080 |
| ECCN Code | EAR99 |
