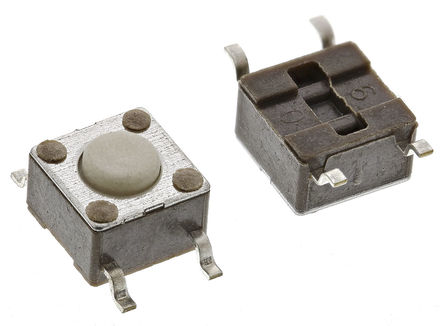

Image is for your reference only,please check specifications for details

FSM2JSMAA - TE Connectivity
Manufacturer:
TE Connectivity
ManyChip's Part#:
MC31702303
Category:
Tactile Switch, Jog Switch
Package:
SMD
Datasheet:
Datasheet 3D Model
Description:
Switch Tactile OFF (ON) SPST Round Button Gull Wing 0.05A 24VDC 1VA 9.18N SMD Bulk
Stock Locations:
Availability:
4,795 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.17

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

FSM2JSMAA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	SMD
Contact Plating	Silver
Voltage Rating (DC)	24 V
Current Rating	50 mA
Contacts Type	SPST
Contact Current Rating	50mA @24VDC
Current Rating (Max)	0.05A @24VDC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-20 ℃
Voltage Rating	24 VDC
Voltage Rating (DC Max)	24 V
Maximum Contact Resistance (Max)	100 mΩ
	Show
Size-Length	6 mm
Size-Width	10 mm
Size-Height	4.55 mm
Contact Material	Copper Alloy
Operating Temperature	-35℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ELV Compliant	Compliant
ECCN Code	EAR99
