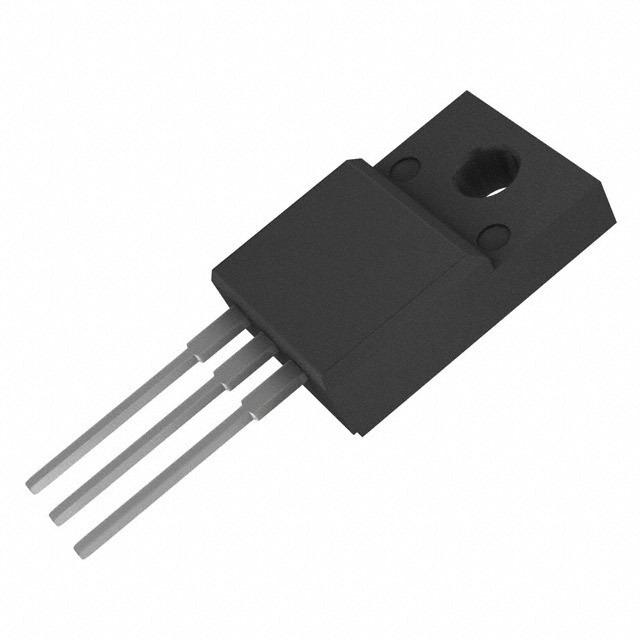

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FYPF2010DNTU is a Schottky Barrier Rectifier features high frequency properties and switching speed. It is suitable for use in switched mode power supply, free-wheeling diodes and polarity protection.
Low forward voltage drop
Guard-ring for overvoltage protection

Show

FYPF2010DNTU Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	100 V
Current Rating	20.0 A
Number of Positions	3 Position
Forward Voltage	770mV @10A
Forward Current	20 A
Max Forward Surge Current (Ifsm)	150 A
Maximum Forward Voltage (Max)	750 mV
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
	Show
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
