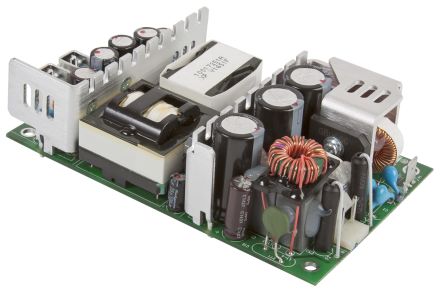

Image is for your reference only,please check specifications for details

GCS350PS24 - XP Power
Manufacturer:
XP Power
ManyChip's Part#:
MC79411604
Category:
AC to DC Converter, AC/DC Converter
Datasheet:
Datasheet 3D Model
Description:
XP POWER GCS350PS24 AC-DC Open Frame Power Supply, ITE & Medical, Adjustable, Fixed, 1 Output, 85V, 264V, 350W, 24V
Stock Locations:
Availability:
222 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 157.54

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The GCS Series has been designed to minimise the no load power consumption and maximise efficiency in order to facilitate equipment design to the latest environmental legislation. Approved for Class I and Class II applications, this range of single output AC-DC power supplies are packaged in an industry standard 3.0" x 5.0" x 1.42" package and achieves EN55011/22 Level B emissions compliance whilst maintaining very low earth leakage currents, making them suitable for a wide range of 1U and other industrial, IT and medical applications. The series has single output versions from 12 V to 56 VDC, dual-fusing for compliance with IEC60601-1 and feature minimal excess heat generation as efficiencies reach 94%. They will deliver up to 350 W of power over an operating range of -40 °C and up to +70 °C and are available with a number of cover options.

Show

GCS350PS24 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Chassis
Power Rating	350 W
Number of Outputs	1 Output
Output Voltage	24 V
Output Current	14.6 A
Output Power	350 W
Isolation Voltage	4 kV
Input Voltage (AC Max)	264 v
Input Voltage (AC Min)	85 v
Output Current (Max)	8.3 A
Input Power (Max)	350 W
Input Voltage	85VAC ~ 264VAC
	Show
Size-Length	127 mm
Size-Width	76.2 mm
Weight	290 g
Operating Temperature	-40℃ ~ 70℃
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2016/06/20
