Description

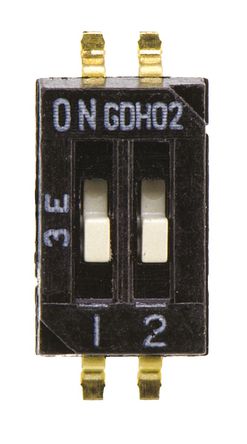

The GDH02S04 is a single-pole single-throw DIP Switch with recessed rocker actuator style, gold contact mating area plating, copper alloy contact base and gold-plated over nickel solder tail contact. Surface mounting and black polyphenylene sulphide (PPS) housing.
100mR at 2VDC/10mA Maximum initial contact resistance
100MR at 100VDC Insulation resistance
300VAC (1 minute) Dielectric strength
UL94V-0 Flammability rating

Show

GDH02S04 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	DIP
Pin Pitch	1.27 mm
Supply Voltage (DC)	50.0 V
Voltage Rating (DC)	24 V
Actuator Type	Rocker
Current Rating	100 mA
Insulation Resistance	100 MΩ
Orientation	Vertical
Contacts Type	SPST
Number of Circuits	2 Circuit
Flammability Rating	UL 94 V-0
Number of Positions	2 Position
Contact Resistance	100 mΩ
Contact Current Rating	25mA @24VDC
Current Rating (Max)	0.025A @24VDC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-30 ℃
Voltage Rating (DC Max)	24 V
Maximum Contact Resistance (Max)	100 mΩ
	Show
Size-Length	3.66 mm
Size-Width	8.12 mm
Size-Height	2.3 mm
Contact Material	Copper Alloy
Operating Temperature	-30℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8536509065
ECCN Code	EAR99
