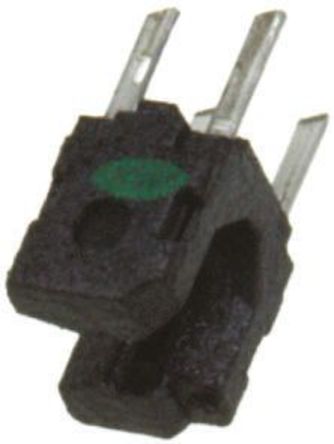

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Optical Sensor Through-Beam 0.043" (1.1mm) Phototransistor PCB Mount
GP1S196HCZ0F Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 4 Pin |
| Case/Package | PCB Mount |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 4 Position |
| Power Dissipation | 100 mW |
| Rise Time | 50 µs |
| Breakdown Voltage (Collector to Emitter) | 35 V |
| Forward Current | 30 mA |
| Forward Current (Max) | 30 mA |
| Fall Time | 50 µs |
| Fall Time (Max) | 150000 ns |
| Fall Time (Max) | 150000 ns |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Power Dissipation (Max) | 100 mW |
| Show | |
| Size-Length | 3.1 mm |
| Size-Width | 2 mm |
| Size-Height | 2.7 mm |
| Operating Temperature | -25℃ ~ 85℃ |
| Product Lifecycle Status | Obsolete |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
