GV2P07 Schneider Electric - Circuit Breaker

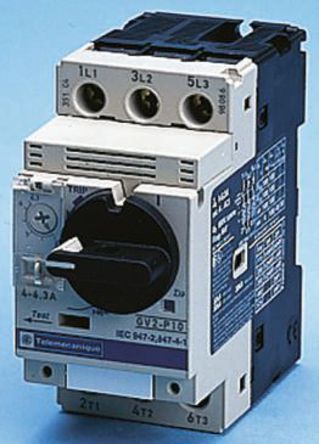

Image is for your reference only,please check specifications for details

GV2P07 - Schneider Electric
Manufacturer:
Schneider Electric
ManyChip's Part#:
MC15522535
Category:
Circuit Breaker
Datasheet:
Datasheet 3D Model
Description:
Электрический TeSys, автоматический выключатель защиты двигателя 1,6–2,5 А, 3P, 8 кА, 690 В
Stock Locations:
Availability:
17 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 276.35

Updated at 17/09/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Устройства GV2 представляют собой трехполюсные ручные пускатели с номинальной мощностью в лошадиных силах. Они включают ручной разъединитель, тепловое реле перегрузки класса 10 и механизм мгновенного магнитного расцепления в одном компактном корпусе. Модели GV2M (кнопочные) или GV2P (с поворотной рукояткой) могут использоваться как отдельно для управления одним двигателем, так и группами из нескольких пускателей, при этом для всей группы требуется лишь одно устройство защиты ответвления (см. статью 430-53 NEC).

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	DIN Rail
Voltage Rating (AC)	575 V
Operating Voltage	230VAC ~ 690VAC
Current Rating	2.5 A
Output Power	0.75 kW
Voltage Rating	690 V
	Show
Size-Length	89 mm
Size-Width	44.5 mm
Size-Height	89 mm
Weight	0.35 kg
Operating Temperature	-20℃ ~ 60℃
Product Lifecycle Status	Not Recommended for New Design
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
