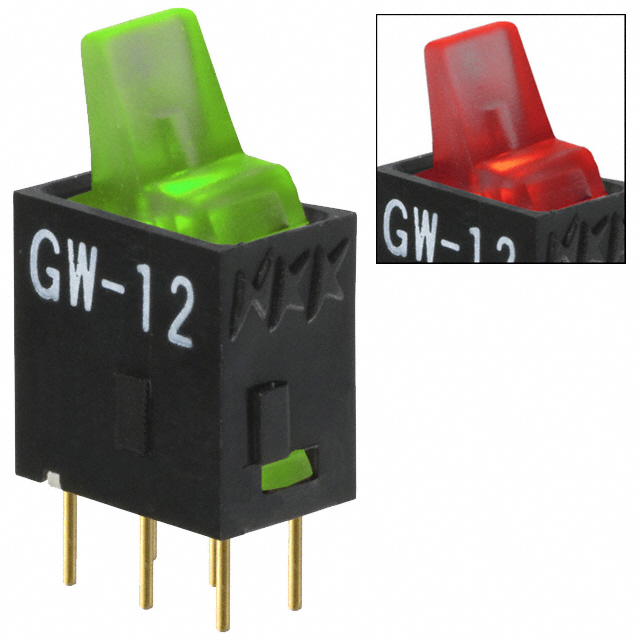

Image is for your reference only,please check specifications for details

GW12LJPCF - NKK
Manufacturer:
NKK
ManyChip's Part#:
MC11772866
Category:
Rocker Switch, Paddle Switch, Switch Rocker
Datasheet:
Datasheet 3D Model
Description:
Switch Rocker ON None ON SPDT PC Pins Paddle Rocker 0.1A 28VAC 28VDC 0.4VA 50000Cycles
Stock Locations:
Availability:
58 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.78

Updated at 03/03/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

* 0.4VA maximum @ 28V AC/DC maximum
* Ultra-Thin Rockers
* Various colored rockers and paddles.
* Combination of dust cover and closely fit housing, actuator, and interior pivot provides protection for contact.

Show

GW12LJPCF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Contact Plating	Gold
Voltage Rating (DC)	28 V
Voltage Rating (AC)	28 V
Number of Rows	1 Row
Contacts Type	SPDT
Current Rating (Max)	0.1A @28VAC, 28VDC
Operating Temperature (Max)	55 ℃
Operating Temperature (Min)	-25 ℃
Maximum Contact Resistance (Max)	80 mΩ
	Show
Size-Length	7.5 mm
Size-Height	10.8 mm
Color	Clear
Contact Material	Phosphor Bronze
Operating Temperature	-25℃ ~ 55℃
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
