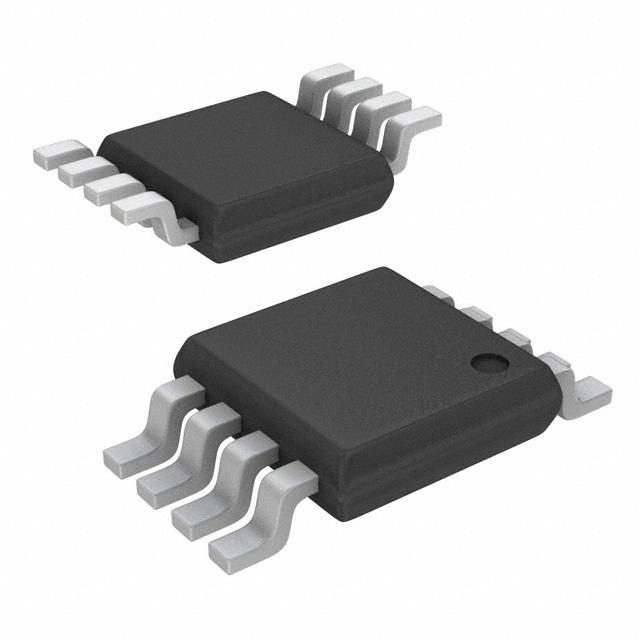

Image is for your reference only,please check specifications for details

OPA2171AQDGKRQ1 - TI
Manufacturer:
TI
ManyChip's Part#:
MC54351096
Category:
Operational Amplifier, OP Amp IC
Package:
VSSOP-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS OPA2171AQDGKRQ1 Operational Amplifier, 2 Amplifier, 3MHz, 1.5V/µs, 2.7V to 36V, ± 1.35V to ± 18V, VSSOP, 8Pins
Stock Locations:
Availability:
238 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.77

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPA171-Q1 family of devices is a 36-V, single-supply, low-noise operational amplifier (op amp) with the ability to operate on supplies ranging from 2.7 V (±1.35 V) to 36 V (±18 V). This device is available in micro-packages and offers low offset, drift, and bandwidth with low quiescent current. The single, dual, and quad versions all have identical specifications for maximum design flexibility.
All trademarks are the property of their respective owners.
Unlike most op amps, which are specified at only one supply voltage, the OPAx171-Q1 family of devices is specified from 2.7 to 36 V. Input signals beyond the supply rails do not cause phase reversal. The OPAx171-Q1 family of devices is stable with capacitive loads up to 300 pF. The input can operate 100 mV below the negative rail and within 2 V of the top rail during normal operation. The device can operate with full rail-to-rail input 100 mV beyond the top rail, but with reduced performance within 2 V of the top rail.
The OPAx171-Q1 op amp is specified from –40°C to +125°C.

Show

OPA2171AQDGKRQ1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VSSOP-8
Output Current	25 mA
Supply Current	475 µA
Number of Circuits	2 Circuit
Number of Positions	8 Position
Common Mode Rejection Ratio	90 dB
Input Offset Drift	300 nV/K
Bandwidth	3 MHz
Slew Rate	1.50 V/μs
Gain Bandwidth Product	3 MHz
Input Offset Voltage	250 µV
Input Bias Current	8 pA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Minimum CMRR Range	90 dB
	Show
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
