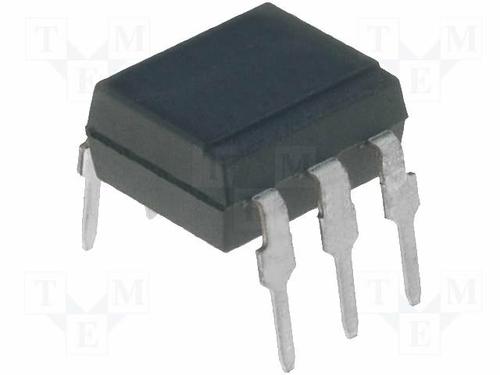

H11L3 - ISOCOM Components
Manufacturer:
ISOCOM Components
ManyChip's Part#:
MC43800577
Category:
Optocoupler, Optoisolator
Package:
DIP
Datasheet:
Datasheet 3D Model
Description:
Logic IC Output Optocoupler, 1Element, 5300V Isolation, 1Mbps, DIP-6
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

H11L3 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	6 Pin
Case/Package	DIP
Output Voltage	16 V
Output Current	0.05 A
Number of Channels	1 Channel
Forward Voltage	1.5 V
Input Current	10 mA
Power Dissipation	0.17 W
Rise Time	0.1 µs
Isolation Voltage	5 kV
Forward Current	50 mA
Reverse Breakdown Voltage	6 V
Maximum Forward Voltage (Max)	1.5 V
Forward Current (Max)	50 mA
Fall Time	0.05 µs
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Power Dissipation (Max)	170 mW
	Show
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
