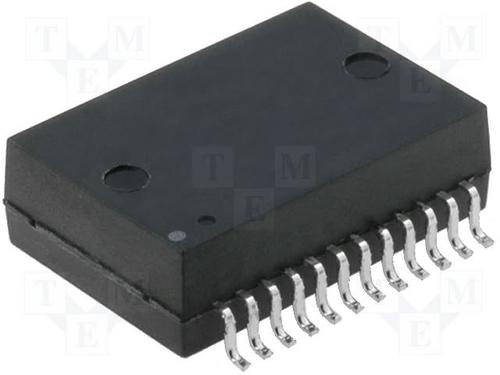

Image is for your reference only,please check specifications for details
- H2006ANL - Pulse Electronics
-
Manufacturer:Pulse Electronics
-
ManyChip's Part#:MC46117389
-
Category:Transformer
-
Package:SMD
-
Datasheet:Datasheet 3D Model
-
Description:Telecom Transformer 1:1 1500Vrms 3.5Ω Prim. DCR -1.2dB Surface Mount
-
Stock Locations:
-
Availability:2,596 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 6.2
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- H2006ANL is manufactured by Pulse Electronics and is categorized in the Pulse Transformers category. H2006ANL is described as MODULE MAGNETICS POE DUAL VOIP. Perfect Parts is a supplier of Transformers and other Miscellaneous.
H2006ANL Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 24 Pin |
| Case/Package | SMD |
| Isolation Voltage | 1500 Vrms |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Minimum CMRR Range | -33dB @100MHz |
| Resistance (DC Max) | 3.5 Ω |
| Show | |
| Size-Length | 13.64 mm |
| Size-Width | 14.99 mm |
| Size-Height | 6.22 mm |
| Weight | 2.56 g |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
