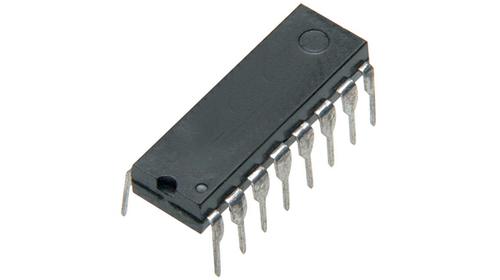

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

ANALOG MULTIPLEXERS-DEMULTIPLEXERS
4051B - SINGLE 8-CHANNEL
4052B - DIFFERENTIAL 4-CHANNEL
4053B - TRIPLE 2-CHANNEL
DESCRIPTION
TheHCC 4051B, 4052Band4053B(extended temperature range) and HCF4051B, 4052B and 4053B
(intermediate temperature range) are monolithic in tegrated circuits, available in 16-lead dual in-line plastic or ceramic package and plastic micropack age. HCC/HCF4051B, HCC/HCF4052B, and
HCC/HCF4053B analog multiplexers/demultiplexers are digitally controlled analog switches hav
ing low ON impedance and very low OFF leakage current.
.QUIESCENT CURRENT SPECIFIED TO 20V FOR HCC DEVICE
.LOW ”ON” RESISTANCE : 125Ω(typ.) OVER 15V p.p. SIGNAL-INPUT RANGE FOR VDD-VEE= 15V
.HIGH ”OFF” RESISTANCE : CHANNEL LEAKAGE ±100pA (typ.) VDD–VEE= 18V
.BINARY ADDRESS DECODING ON CHIP
.VERY LOW QUIESCENT POWER DISSIPATION UNDER ALL DIGITAL CONTROL INPUT AND SUPPLY CONDITIONS : 0.2µW (typ.), VDD–VSS=VDD–VEE= 10V
.MATCHED SWITCH CHARACTERISTICS : RON=5Ω(typ.) for VDD–VEE= 15V
.WIDE RANGE OF DIGITAL AND ANALOG SIG NAL LEVELS : DIGITAL 3 TO 20V, ANALOG TO 20V p.p.
.5V, 10V, AND 15V PARAMETRIC RATINGS
.INPUT CURRENT OF 100mA AT 18V AND 25°C FOR HCC DEVICE
.100% TESTED FOR QUIESCENT CURRENT
.MEETS ALL REQUIREMENTS OF JEDECTENTATIVE STANDARD No 13A, ”STANDARD
SPECIFICATIONS FOR DESCRIPTION OF ”B” SERIES CMOS DEVICES”

Show

HCF4053BEY Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	PDIP-16
Number of Contacts	5 Contact
Supply Voltage (DC)	11.5 V
Number of Outputs	3 Output
Contacts Type	SPDT
Supply Current	80 nA
Number of Circuits	3 Circuit
Number of Channels	3 Channel
Polarity	Non-Inverting
Power Dissipation	0.5 W
Quiescent Current	80.0 nA
Bandwidth	60 MHz
Number of Inputs	6 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	55 ℃
3dB Bandwidth	60 MHz
Power Dissipation (Max)	500 mW
Supply Voltage (Max)	20 V
Supply Voltage (Min)	3 V
	Show
Size-Length	20 mm
Size-Width	7.1 mm
Size-Height	4.59 mm
Operating Temperature	-55℃ ~ 125℃ (TA)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
