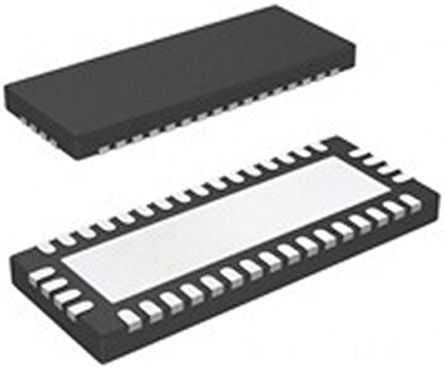

Image is for your reference only,please check specifications for details

HD3SS3412RUAT - TI
Manufacturer:
TI
ManyChip's Part#:
MC9580365
Category:
PCI Express IC
Package:
WQFN-42
Datasheet:
Datasheet 3D Model
Description:
3.3V, PCI Express 3.0 4Channel Analog Differential Switch 42-WQFN 0 to 70
Stock Locations:
Availability:
256 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.55

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The HD3SS3412RUAT is a 4-channel high-speed passive Differential Switch for two full PCI Express x1 lanes from one source to one of two target locations in a PC/server application. With its bidirectional capability the HD3SS3412 also supports applications that allow connections between one target and two source devices, such as a shared peripheral between two platforms. The HD3SS3412 has a single control line (SEL pin) which can be used to control the signal path between port A and either port B or port C. The device is specified to operate from a single supply voltage of 3.3V over the full temperature range of 0 to 70°C. The HD3SS3412 is a generic 4-CH high-speed MUX/de-MUX type of switch that can be used for routing high-speed signals between two different locations on a circuit board.
Compatible with multiple interface standards
Operating up to 12Gbps including PCI express gen III and USB 3.0
Wide -3dB differential BW of over 8GHz
Bidirectional "MUX/De-MU" type differential switch
3.3V ±10% VDD Operating range
Common industry standard pin-out
Supports XAUI and SGMII

Show

HD3SS3412RUAT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	42 Pin
Case/Package	WQFN-42
Supply Voltage (DC)	2.97V ~ 3.63V
Supply Current	4.7 mA
Number of Channels	4 Channel
Number of Positions	42 Position
Bandwidth	8.00 GHz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	8 GHz
Power Dissipation (Max)	21.6 mW
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	3 V
	Show
Size-Length	9.1 mm
Size-Width	3.6 mm
Size-Height	0.75 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
