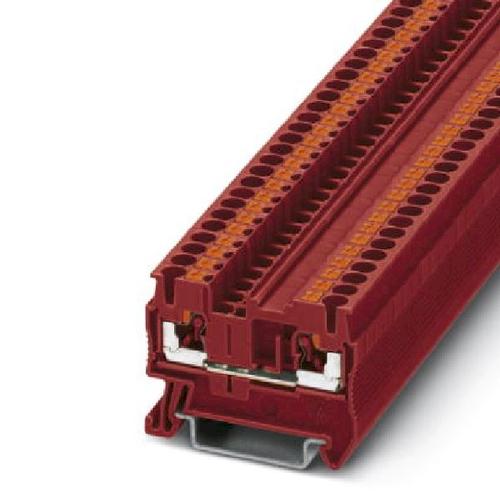

Image is for your reference only,please check specifications for details
- 3209512 - Phoenix
-
Manufacturer:Phoenix
-
ManyChip's Part#:MC52211670
-
Category:Terminal Block, Connector Terminal
-
Datasheet:Datasheet 3D Model
-
Description:Feed Thru Trm Blk, PT 2.5 Series, 2.5mm², 800V, 24A, Push In Term, Red, Single Lvl
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Reduce fatigue, save time and simplify wiring with Phoenix Contact"s push-in terminal blocks. These tool-less terminal blocks use a direct push-in connection and require 50 percent lower insertion force when connecting solid conductors or conductors with ferrules. As part of the CLIPLINE Complete system, push-in terminal blocks are compatible with standard system accessories, including bridging, checking and marking. They deliver maximum flexibility in a variety of options, including feed-through, multi-conductor, component and pluggable terminal blocks, and can be combined with screw, spring-cage and fast connection terminal blocks.
- **Features:
- **
- * Orange Push Button Located on the Actuation Shaft Opens the Spring to the Maximum Wiring Space of (4 mm2)/AWG 12 for Fast, Clear Wiring and High-Contacting Safety
- * The Actuation Lever Allows You to Release Conductors Using Any Type of Tool without Direct Contact with Live Parts
- * Front Connection for Space-Saving Convenient Wiring
3209512 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | DIN Rail |
| Number of Contacts | 2 Contact |
| Wire Gauge | 12AWG ~ 26AWG |
| Number of Rows | 2 Row |
| Number of Circuits | 1 Circuit |
| Flammability Rating | UL 94 V-0 |
| Number of Positions | 2 Position |
| Current Rating (Max) | 24 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -60 ℃ |
| Voltage Rating (Max) | 800 V |
| Operating Voltage (Max) | 800 V |
| Show | |
| Size-Length | 48.5 mm |
| Size-Width | 5.2 mm |
| Size-Height | 36.5 mm |
| Housing Color | Red |
| Color | Red |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536904000 |
| ECCN Code | EAR99 |
