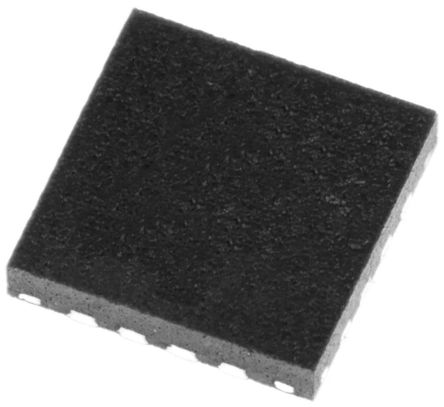

Image is for your reference only,please check specifications for details

TSV854IQ4T - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC43057910
Category:
Operational Amplifier, OP Amp IC
Package:
QFN-16
Datasheet:
Datasheet 3D Model
Description:
Operational Amplifiers - Op Amps LP 180uA 5V 50nA 0.8V mV 2.5V to 5.5V
Stock Locations:
Availability:
214 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.76

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TSV85x, TSV85xA series of single, dual, and quad operational amplifiers offer low voltage operation with a rail-to-rail output swing. The TSV85x, TSV85xA series outperforms the industry standard LMV321, proposing lower supply voltage capability, enhanced input offset voltage, and smaller packages.
The devices are offered with either industry standard pinouts or with a power-saving shutdown feature that reduces the supply current to a maximum of 50 nA at 25 °C.
The wide temperature range, high ESD tolerance, and automotive grade qualification ease the use in harsh automotive applications.
**Key Features**
Low power consumption: 180 μA max at 5 V
Low power shutdown mode: 50 nA max
Low offset voltage: 0.8 mV max at 25 °C
Tiny packages
Extended temperature range: -40 °C to 125 °C
Low supply voltage: 2.3 V - 5.5 V
Gain bandwidth product: 1.3 MHz
Automotive qualification

Show

TSV854IQ4T Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	QFN-16
Output Current	70mA @5V
Supply Current	130 µA
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	16 Position
Common Mode Rejection Ratio	75 dB
Bandwidth	1.3 MHz
Slew Rate	700 mV/μs
Gain Bandwidth Product	1.3 MHz
Input Offset Voltage	4 mV
Input Bias Current	27 nA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	1.3 MHz
Minimum CMRR Range	72 dB
Supply Voltage	2.5V ~ 5.5V
	Show
Size-Length	3.1 mm
Size-Width	3.1 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
