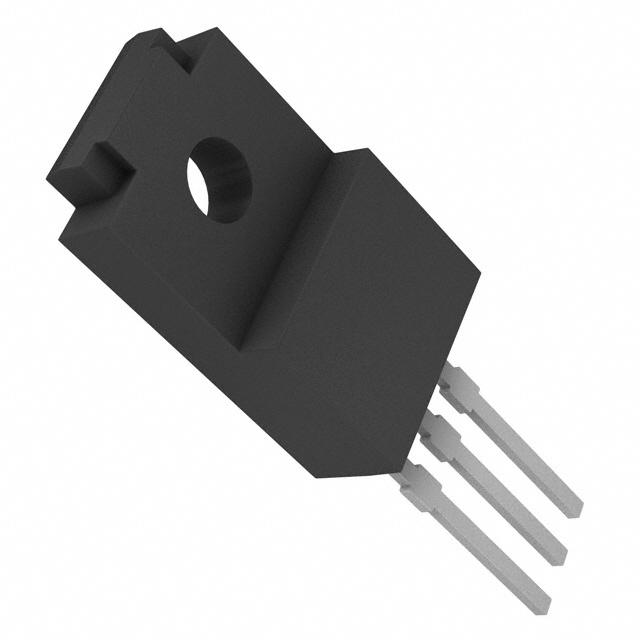

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

R8008ANX Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.79 Ω
Polarity	N-Channel
Power Dissipation	66 W
Threshold Voltage	5 V
Drain to Source Voltage (Vds)	800 V
Continuous Drain Current (Ids)	8A
Rise Time	50 ns
Input Capacitance (Ciss)	1080pF @25V(Vds)
Input Power (Max)	50 W
Fall Time	30 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	50W (Tc)
	Show
Material	Silicon
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Bulk
Minimum Packing Quantity	1000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
