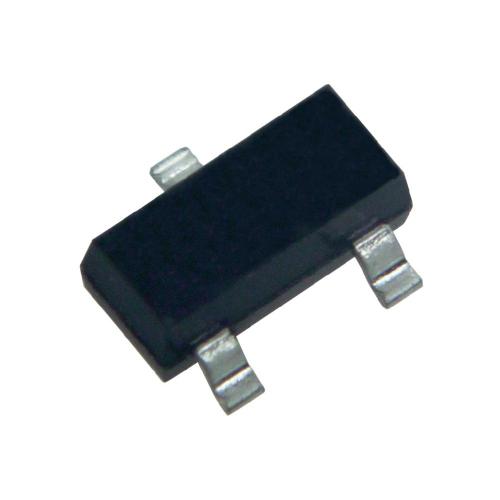

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Trans MOSFET N-CH 60V 0.5A 3-Pin SOT-23 T/R
MMBF170LT1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package | SOT-23-3 |
| Voltage Rating (DC) | 60.0 V |
| Current Rating | 500 mA |
| Number of Channels | 1 Channel |
| Drain to Source Resistance (on) (Rds) | 5 Ω |
| Polarity | N-Channel |
| Power Dissipation | 225 mW |
| Drain to Source Voltage (Vds) | 60 V |
| Breakdown Voltage (Drain to Source) | 60 V |
| Breakdown Voltage (Gate to Source) | ±20.0 V |
| Continuous Drain Current (Ids) | 500 mA |
| Input Capacitance (Ciss) | 60pF @10V(Vds) |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | 55 ℃ |
| Power Dissipation (Max) | 225mW (Ta) |
| Show | |
| Size-Length | 2.9 mm |
| Size-Width | 1.3 mm |
| Size-Height | 0.94 mm |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Unknown |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
| ECCN Code | EAR99 |
