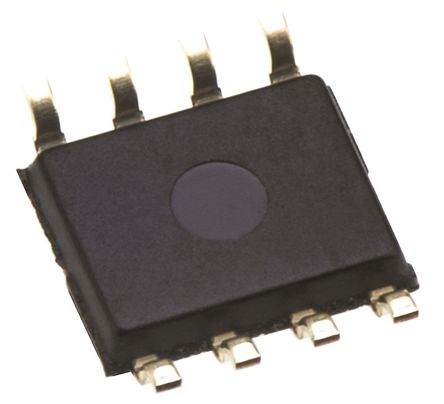

Image is for your reference only,please check specifications for details

L6569AD - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC49463868
Category:
FET Driver
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
L6569 Series Dual 175mA 120Ω SMT Half Bridge Oscillator Driver - SOIC-8
Stock Locations:
Availability:
2,401 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.58

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The L6569AD is a high voltage Half-bridge Driver with built-in oscillator. The frequency of the oscillator can be programmed using external resistor and capacitor. The internal circuitry of the device allows it to be driven also by external logic signal. The output drivers are designed to drive external N-channel power MOSFET and IGBT. The internal logic assures a dead time (typical 1.25ms) to avoid cross conduction of the power devices.
ESD protected
Under-voltage lockout with hysteresis
Internal bootstrap diode structure
BCD offline technology
Programmable oscillator frequency
High voltage rail up to 600V
Driver current capability - 270mA sink and 170mA source
dV/dt immunity of up to ±50V/ns
1.25µs Dead time
150mA Very low start up current
15.6V Zener clamp on VS
