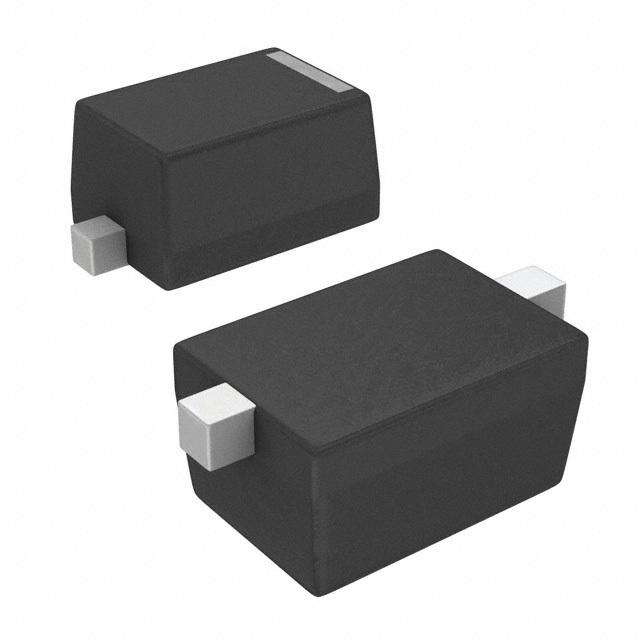

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 1N4148WT
- Features
- ---
- |
- Fast Switching Diode (Trr < 4.0nsec)
- Flat Lead, Surface Mount Device Under 0.70mm Height
- Extremely Small Outline Plastic Package SOD523F
- Moisture Level Sensitivity 1
- Pb-free Version and RoHS Compliant
- Matte Tin (Sn) Lead Finish
- Green Mold Compound
1N4148WT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | SOD-523-2 |
| Number of Positions | 2 Position |
| Forward Voltage | 1V @10mA |
| Thermal Resistance | 500℃/W (RθJA) |
| Reverse recovery time | 4 ns |
| Forward Current | 300 mA |
| Max Forward Surge Current (Ifsm) | 4 A |
| Maximum Forward Voltage (Max) | 1 V |
| Forward Current (Max) | 300 mA |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 200 mW |
| Show | |
| Size-Length | 1.3 mm |
| Size-Width | 0.9 mm |
| Size-Height | 0.7 mm |
| Operating Temperature | -55℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2014/12/17 |
