Complementary ThermalTrak Transistors
The ThermalTrak family of devices has been designed to eliminate thermal equilibrium lag time and bias trimming in audio amplifier applications. They can also be used in other applications as transistor die protection devices.
Features
•Thermally Matched Bias Diode
•Instant Thermal Bias Tracking
•Absolute Thermal Integrity
•High Safe Operating Area
•Pb−Free Packages are Available
Applications
•High−End Consumer Audio Products
♦Home Amplifiers
♦Home Receivers
•Professional Audio Amplifiers
♦Theater and Stadium Sound Systems
♦Public Address Systems (PAs)

Show

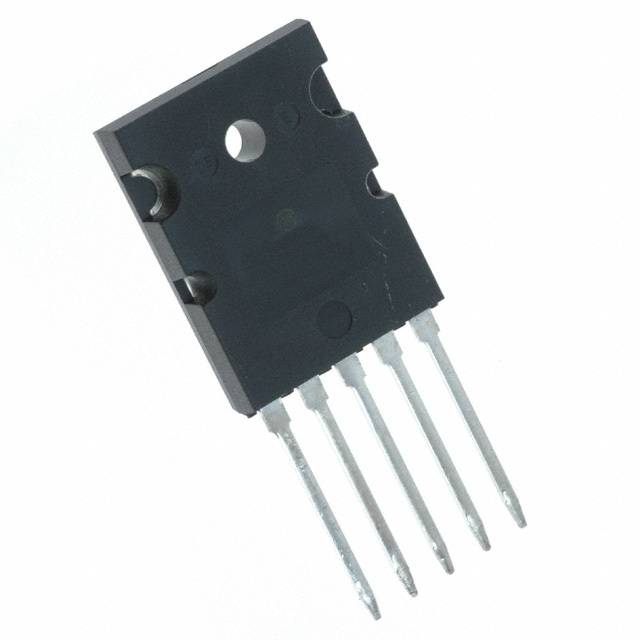

NJL1302D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	TO-264-5
Voltage Rating (DC)	-260 V
Current Rating	-25.0 A
Polarity	PNP
Breakdown Voltage (Collector to Emitter)	260 V
Continuous Collector Current	15A
hFE Min	75 @5A, 5V
Input Power (Max)	200 W
	Show
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Obsolete
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
