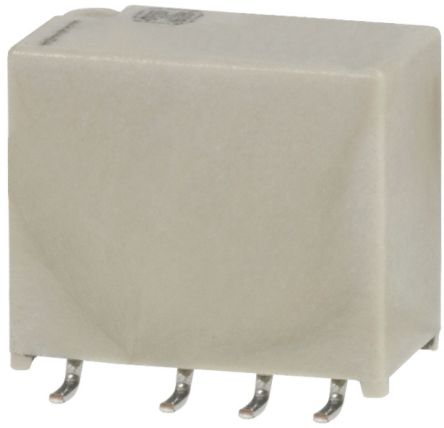

Image is for your reference only,please check specifications for details

AGN200S12 - Panasonic
Manufacturer:
Panasonic
ManyChip's Part#:
MC52012260
Category:
Industrial Relay
Package:
SMD
Datasheet:
Datasheet 3D Model
Description:
Electromechanical Relay 12VDC 1.028KΩ 1A DPDT(10.6mm 5.7mm 10mm) SMD General Purpose Relay
Stock Locations:
Availability:
1,804 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.25

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**AGN Series**
These ultra-small PCB mount polarized relays have a compact slim body with a low height of 9mm and small surface area of 5.7 x 10.6 mm. They also offer outstanding surge resistance, increased packging density and high vibration and shock resistance. Typical applications include telecommunications and measurement equipment, audio visual equipment etc.

Show

AGN200S12 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SMD
Voltage Rating (DC)	110 V
Voltage Rating (AC)	125 V
Insulation Resistance	1000 MΩ
Contacts Type	DPDT
Contact Resistance	100 mΩ
Power Consumption	140 mW
Contact Current Rating	1 A
Coil Voltage	12 VDC
Coil Current	11.7 mA
Coil Power (DC)	140 mW
Coil Resistance	1.028 kΩ
Current Rating (Max)	1 A
Coil Voltage (DC)	12 V
Coil Power	140 mW
Input Power (Max)	30W, 37.5VA
Switching Current (Max)	1 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating (DC Max)	110 V
Voltage Rating (AC Max)	125 V
	Show
Size-Length	10.6 mm
Size-Width	10 mm
Size-Height	10 mm
Contact Material	Silver Palladium
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
HTS Code	8536490050
ECCN Code	EAR99
