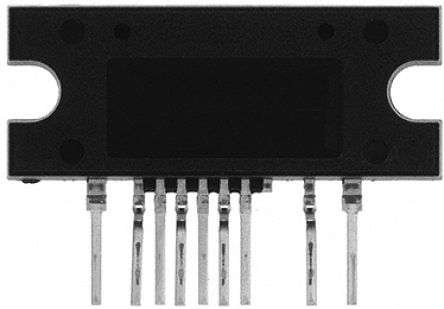

FSFR1700XSL - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC44973159
Category:
AC to DC Converter, AC/DC Power Module
Package:
SIP-9
Datasheet:
Datasheet 3D Model
Description:
Fairchild Semiconductor FSFR1700XSL Intelligent Power Switch, Resonant Converter, 350 → 400V, 100W, 10Pin, SIP
Stock Locations:
Availability:
438 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.68

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

* Variable Frequency Control with 50% Duty Cycle for Half-Bridge Resonant Converter Topology * High Efficiency through Zero Voltage Switching (ZVS) * Internal UniFET with Fast-Recovery Body Diode * Fixed Dead Time (350 ns) Optimized for MOSFETs * up to 300 kHz Operating Frequency * Auto-Restart Operation for All Protections with * External LVcc * Protection Functions: Over-Voltage Protection (OVP), Over-Current Protection (OCP), Abnormal Over-Current Protection (AOCP), Internal Thermal Shutdown (TSD) * 200W Maximum Output Power

Show

FSFR1700XSL Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	9 Pin
Case/Package	SIP-9
Power Rating	200 W
Number of Outputs	1 Output
Output Current	6 A
Breakdown Voltage	500 V
Supply Current	7 mA
Number of Positions	9 Position
Power Dissipation	11.6 W
Switching Frequency	300kHz (MAX)
Duty Cycle	50 %
Output Current (Min)	6 A
Operating Temperature (Max)	130 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	11600 mW
	Show
Size-Length	26.2 mm
Size-Width	10.7 mm
Size-Height	10.7 mm
Operating Temperature	-40℃ ~ 130℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
