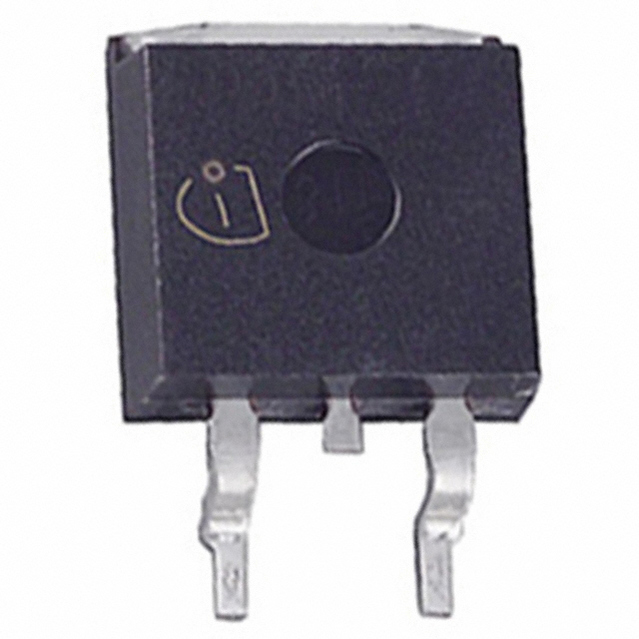

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- P-Channel 60V 80A (Tc) 340W (Tc) Surface Mount PG-TO263-3-2
SPB80P06P Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package | TO-263-3 |
| Voltage Rating (DC) | -60.0 V |
| Current Rating | -80.0 A |
| Number of Channels | 1 Channel |
| Polarity | P-CH |
| Power Dissipation | 340W (Tc) |
| Threshold Voltage | 4 V |
| Input Capacitance | 5.03 nF |
| Gate Charge | 173 nC |
| Drain to Source Voltage (Vds) | 60 V |
| Continuous Drain Current (Ids) | 80.0 A |
| Input Capacitance (Ciss) | 5033pF @25V(Vds) |
| Input Power (Max) | 340 W |
| Power Dissipation (Max) | 340W (Tc) |
| Show | |
| Size-Width | 9.25 mm |
| Operating Temperature | -55℃ ~ 175℃ (TJ) |
| Product Lifecycle Status | Obsolete |
| Packaging | Cut Tape (CT) |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
