HEF4094BP - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC142833270
Category:
Shift Register IC
Package:
DIP-16
Datasheet:
Datasheet 3D Model
Description:

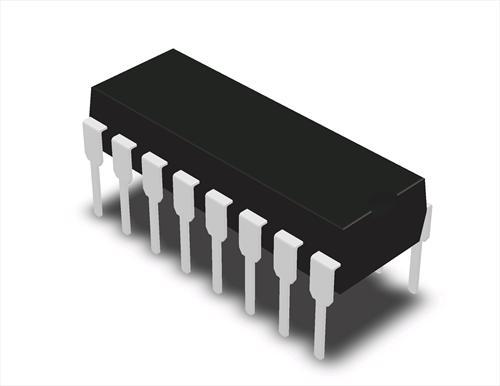

NXP HEF4094BP Shift Register, Shift Store, HEF4094, Serial to Parallel, 1Element, 8Bit, DIP, 16Pins
Stock Locations:
Availability:
798 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.41

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The HEF4094BP is a 8-stage Shift-And-Store Register has a storage latch associated with each stage for strobing data from the serial input to parallel buffered 3-state outputs QP0 to QP7. The parallel outputs may be connected directly to common bus lines. Data is shifted on positive-going clock transitions. The data in each shift register stage is transferred to the storage register when the strobe (STR) input is high. Data in the storage register appears at the outputs whenever the OE signal is high. Two serial outputs (QS1 and QS2) are available for cascading a number of HEF4094B devices. Serial data is available at QS1 on positive-going clock edges to allow high-speed operation in cascaded systems with a fast clock rise time. The same serial data is available at QS2 on the next negative going clock edge. This is used for cascading HEF4094B devices when the clock has a slow rise time. It operates over a recommended VDD power supply range of 3 to 15V referenced to VSS.
Fully static operation
Standardized symmetrical output characteristics
Complies with JEDEC standard JESD 13-B

Show

HEF4094BP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	DIP-16
Frequency	28.0 MHz
Supply Voltage (DC)	3.00V (min)
Number of Positions	16 Position
Number of Gates	1 Gate
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	15 V
Supply Voltage (Min)	4.5 V
	Show
Product Lifecycle Status	Unknown
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
