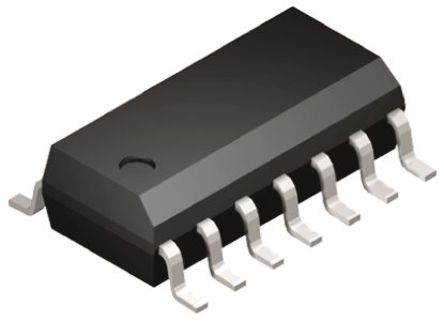

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

HFA3046BZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	SOIC-14
Voltage Rating (DC)	8.00 V
Current Rating	65.0 mA
Polarity	NPN
Power Dissipation	150 mW
Breakdown Voltage (Collector to Emitter)	12 V
Continuous Collector Current	0.065A
hFE Min	40 @10mA, 2V
Input Power (Max)	150 mW
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	0.15 W
	Show
Size-Length	8.75 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
