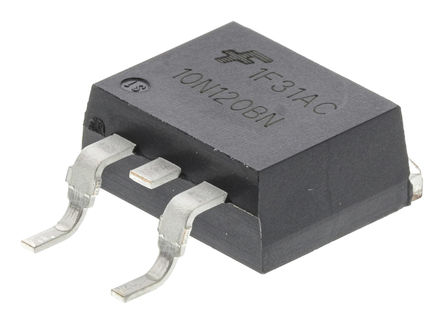

Image is for your reference only,please check specifications for details

HGT1S10N120BNST - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC12912921
Category:
IGBT Transistor, IGBT Module
Package:
TO-263-3
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR HGT1S10N120BNST IGBT Single Transistor, 35A, 2.45V, 298W, 1.2kV, TO-263AB, 3Pins
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The HGT1S10N120BNST is a N-channel Non-punch Through (NPT) IGBT ideal for many high voltage switching applications operating at moderate frequencies where low conduction losses are essential, such as UPS and solar inverter. It is new member of the MOS gated high voltage switching IGBT family. It combines the best features of MOSFETs and bipolar transistors. This device has the high input impedance of a MOSFET and the low ON-state conduction loss of a bipolar transistor.
Short-circuit rating
Avalanche rated
2.45V @ IC = 10A Low saturation voltage
140ns Fall time @ TJ = 150°C
298W Total power dissipation @ TC = 25°C

Show

HGT1S10N120BNST Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-263-3
Voltage Rating (DC)	1.20 kV
Current Rating	35.0 A
Number of Positions	3 Position
Power Dissipation	298 W
Breakdown Voltage (Collector to Emitter)	1200 V
Input Power (Max)	298 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	298 W
	Show
Size-Length	10.67 mm
Size-Width	11.33 mm
Size-Height	4.83 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
