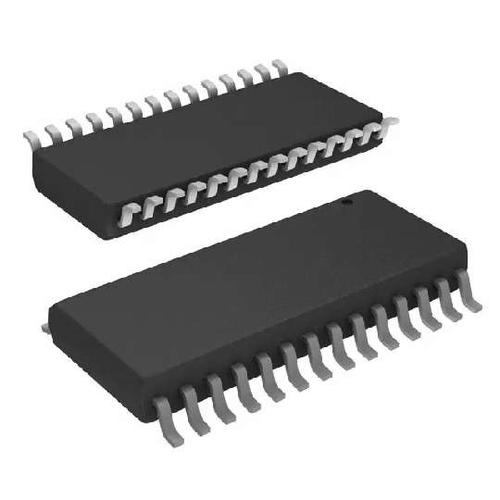

- HIN211EIAZ - Intersil
-
Manufacturer:Intersil
-
ManyChip's Part#:MC70864665
-
Category:Interface IC, Interface Controller
-
Package:SSOP-28
-
Datasheet:Datasheet 3D Model
-
Description:Pb-Free RS232 5V 4D/5R 15kV 0.1uF CAP 28SSOP IND HT SUSA CODE:8542390000
-
Stock Locations:
-
Availability:1,564 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.41
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The HIN202E, HIN206E, HIN207E, HIN208E, HIN211E, HIN213E, HIN232E family of RS-232 transmitters/receivers interface circuits meet all ElA high-speed RS-232E and V.28 specifications, and are particularly suited for those applications where ±12V is not available. A redesigned transmitter circuit improves data rate and slew rate, which makes this suitable for ISDN and high speed modems. The transmitter outputs and receiver inputs are protected to ±15kV ESD (Electrostatic Discharge). They require a single +5V power supply and feature onboard charge pump voltage converters which generate +10V and -10V supplies from the 5V supply. The family of devices offers a wide variety of high-speed RS-232 transmitter/receiver combinations to accommodate various applications (see Selection Table).
- Features
- • Pb-Free Plus Anneal Available (RoHS Compliant)
- • High Speed ISDN Compatible . . . . . . . . . . . . . 230kbits/s
- • ESD Protection for RS-232 I/O Pins to ±15kV (IEC61000)
- • Meets All RS-232E and V.28 Specifications
- • Requires Only 0.1µF or Greater External Capacitors
- • Two Receivers Active in Shutdown Mode (HIN213E)
- • Requires Only Single +5V Power Supply
- • Onboard Voltage Doubler/Inverter
- • Low Power Consumption (Typ) . . . . . . . . . . . . . . . . . 5mA
- • Low Power Shutdown Function (Typ) . . . . . . . . . . . . .1µA
- • Three-State TTL/CMOS Receiver Outputs
- • Multiple Drivers
- - ±10V Output Swing for +5V Input
- - 300Ω Power-Off Source Impedance
- - Output Current Limiting
- - TTL/CMOS Compatible
- • Multiple Receivers
- - ±30V Input Voltage Range
- - 3kΩ to 7kΩ Input Impedance
- - 0.5V Hysteresis to Improve Noise Rejection
- Applications
- • Any System Requiring High-Speed RS-232 Communications Port
- - Computer - Portable, Mainframe, Laptop
- - Peripheral - Printers and Terminals
- - Instrumentation, UPS
- - Modems, ISDN Terminal Adaptors
HIN211EIAZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 28 Pin |
| Case/Package | SSOP-28 |
| Supply Voltage (DC) | 5.00 V, 5.50 V (max) |
| Supply Current | 20 mA |
| Number of Positions | 28 Position |
| Data Rate | 230 kbps |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 4.5V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 4.5 V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2014/12/17 |
| ECCN Code | EAR99 |
