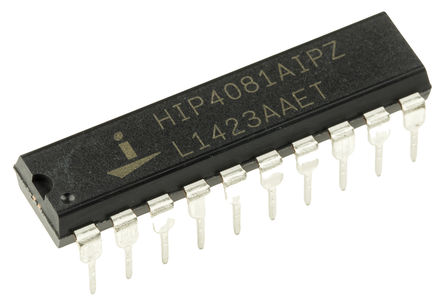

Image is for your reference only,please check specifications for details

HIP4081AIPZ - Intersil
Manufacturer:
Intersil
ManyChip's Part#:
MC54643569
Category:
FET Driver
Package:
DIP-20
Datasheet:
Datasheet 3D Model
Description:
Intersil HIP4081AIPZ, Quad MOSFET Power Driver 2.5A Full/Half Bridge, 9.5 → 15V, 20Pin PDIP
Stock Locations:
Availability:
582 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.54

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The HIP4081AIPZ is a high frequency, medium voltage Full-bridge N-channel FET Driver IC. It can drive every possible switch combination except those which would cause a shoot-through condition. This can switch at frequencies up to 1MHz and is well suited to driving voice coil motors, high-frequency switching power amplifiers and power supplies and can drive medium voltage brush motors. Short propagation delays of approximately 55ns maximizes control loop crossover frequencies and dead-times which can be adjusted to near zero to minimize distortion, resulting in rapid, precise control of the driven load.
Independently drives 4 N-channel FET in full-bridge configurations
95VDC Bootstrap supply maximum voltage
Drives 1000pF load at 1MHz in free air at 50°C
User-programmable dead time
On-chip Charge-pump and bootstrap upper bias supplies
DIS (disable) overrides input control
Very low power consumption
Under voltage protection
Stresses those listed in absolute maximum ratings may cause permanent damage to the device.

Show

HIP4081AIPZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	20 Pin
Case/Package	DIP-20
Supply Voltage (DC)	9.50 V, 15.0 V (max)
Rise/Fall Time	10 ns
Number of Outputs	4 Output
Output Voltage	≤15.0 V
Output Current	2.50 A
Number of Positions	20 Position
Output Current (Max)	2.5 A
Fall Time (Max)	25 ns
Fall Time (Max)	25 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	9.5V ~ 15V
Supply Voltage (Max)	15 V
Supply Voltage (Min)	9.5 V
	Show
Size-Length	26.9 mm
Size-Width	7.11 mm
Size-Height	4.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
