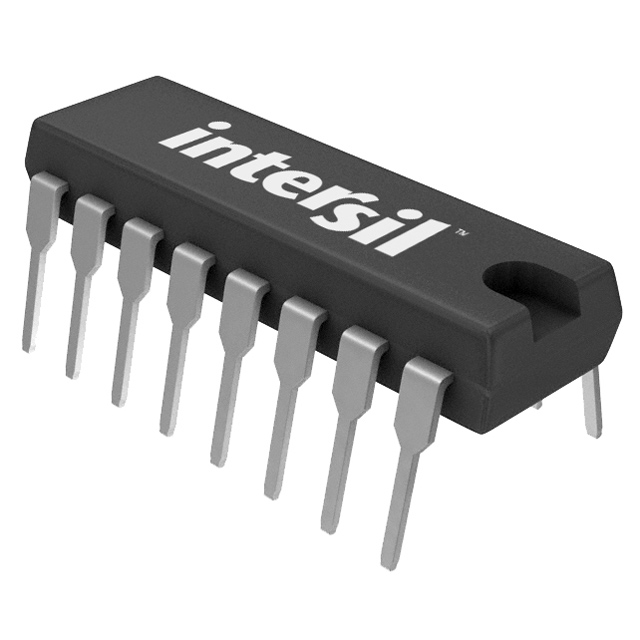

- HIP4082IP - Intersil
-
Manufacturer:Intersil
-
ManyChip's Part#:MC105897154
-
Category:FET Driver
-
Package:PDIP-16
-
Datasheet:Datasheet 3D Model
-
Description:Driver 1.25A 4Out Hi/Lo Side Full Brdg/Half Brdg/H Brdg Non-Inv 16Pin PDIP
-
Stock Locations:
-
Availability:2,442 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 6.61
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Half-Bridge Gate Driver IC Non-Inverting 16-PDIP
HIP4082IP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 16 Pin |
| Case/Package | PDIP-16 |
| Supply Voltage (DC) | 8.50V (min) |
| Rise/Fall Time | 9 ns |
| Number of Outputs | 4 Output |
| Output Voltage | 1.3 V |
| Output Current | 1.25 A |
| Rise Time | 20 ns |
| Output Current (Max) | 1.25 A |
| Fall Time | 20 ns |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | 55 ℃ |
| Supply Voltage | 8.5V ~ 15V |
| Supply Voltage (Max) | 15 V |
| Show | |
| Size-Length | 19.68 mm |
| Size-Width | 7.11 mm |
| Size-Height | 4.95 mm |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
