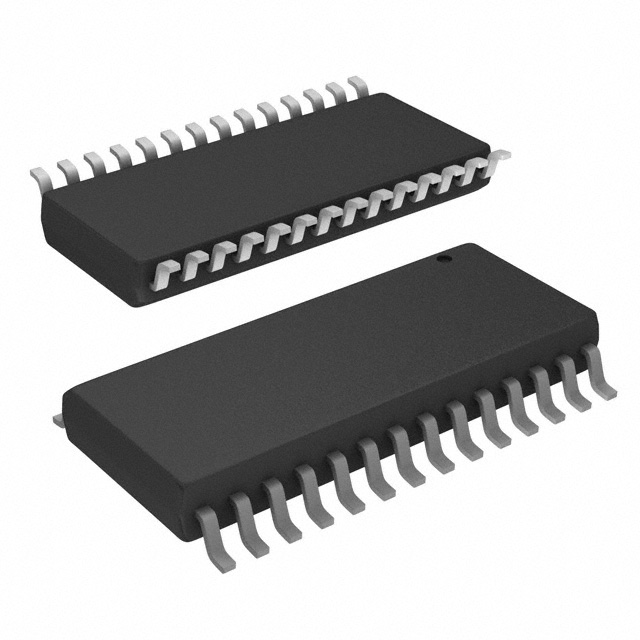

Image is for your reference only,please check specifications for details
- HIP6021CB - Intersil
-
Manufacturer:Intersil
-
ManyChip's Part#:MC152186492
-
Category:Voltage Regulator
-
Datasheet:Datasheet 3D Model
-
Description:Voltage Mode PWM Controller 1.3V to 3.5V/1.5V to 3.3V/1.5V/1.8V 25A 28Pin SOIC W
-
Stock Locations:
-
Availability:281 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The HIP6021 provides the power control and protection for four output voltages in high-performance, graphics intensive microprocessor and computer applications. The IC integrates a voltage-mode PWM controller and three linear controllers, as well as the monitoring and protection functions into a 28-pin SOIC package. The PWM controller regulates the microprocessor core voltage with a synchronous-rectified buck converter. The linear controllers regulate the computer system’s AGP 1.5V or 3.3V bus power, the 1.5V GTL bus power, and the 1.8V power for the North/South Bridge core voltage and/or cache memory circuits. The HIP6021 includes an Intel-compatible, TTL 5-input digital-to-analog converter (DAC) that adjusts the core PWM output voltage from 1.3VDC to 2.05VDC in 0.05V steps and from 2.1VDC to 3.5VDC in 0.1V increments. The precision reference and voltage-mode control provide ±1% static regulation.
- Features
- • Provides 4 Regulated Voltages
- - Microprocessor Core, AGP Bus, Memory, and GTL Bus Power
- • Drives N-Channel MOSFETs
- • Linear Regulator Drives Compatible with both MOSFET and Bipolar Series Pass Transistors
- • Fixed or Externally Resistor-Adjustable Linear Outputs (FIX Pin)
- • Simple Single-Loop Control Design
- - Voltage-Mode PWM Control
- • Fast PWM Converter Transient Response
- - High-Bandwidth Error Amplifier
- - Full 0% to 100% Duty Ratio
- • Excellent Output Voltage Regulation
- - Core PWM Output: ±1% Over Temperature
- - Other Outputs: ±3% Over Temperature
- • TTL-Compatible 5-Bit DAC Microprocessor Core Output Voltage Selection
- - Wide Range . . . . . . . . . . . . . . . . . . . 1.3VDC to 3.5VDC
- • Power-Good Output Voltage Monitor
- • Over-Voltage and Over-Current Fault Monitors
- - Switching Regulator Does Not Require Extra Current
- Sensing Element, Uses MOSFET’s rDS(ON)
- • Small Converter Size
- - Constant Frequency Operation
- - 200kHz Free-Running Oscillator; Programmable From 50kHz to Over 1MHz
- - Small External Component Count
- • Pb-Free Available (RoHS Compliant)
HIP6021CB Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 28 Pin |
| Case/Package | SOIC-28 |
| Number of Outputs | 4 Output |
| Switching Frequency | 215 kHz |
| Supply Voltage | 5V ~ 12V |
| Show | |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Obsolete |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
