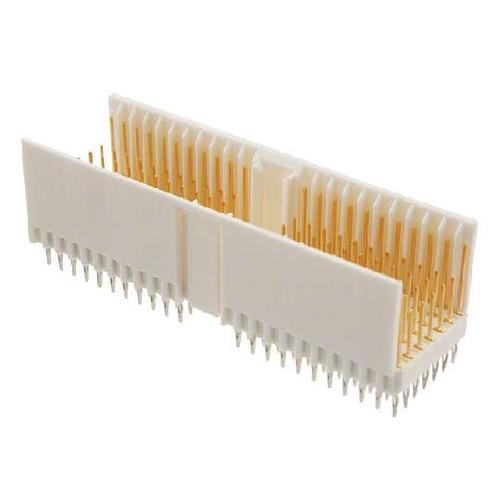

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

HM2P07PD5111N9LF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Pin Pitch	5.00 mm
Number of Contacts	110 Contact
Gender	Male
Contact Plating	Gold
Current Rating	1.5 A
Number of Rows	7 Row
Number of Positions	154 Position
Number of Mating Cycles	250 Cycle
Current Rating (Max)	1.5A/触头
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating (Max)	750 VAC
Voltage Rating	750 Vrms
Maximum Contact Resistance (Max)	20 mΩ
	Show
Size-Length	50.0 mm
Size-Width	15.4 mm
Size-Height	13.45 mm
Housing Color	Cream White
Contact Material	Phosphor Bronze
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
