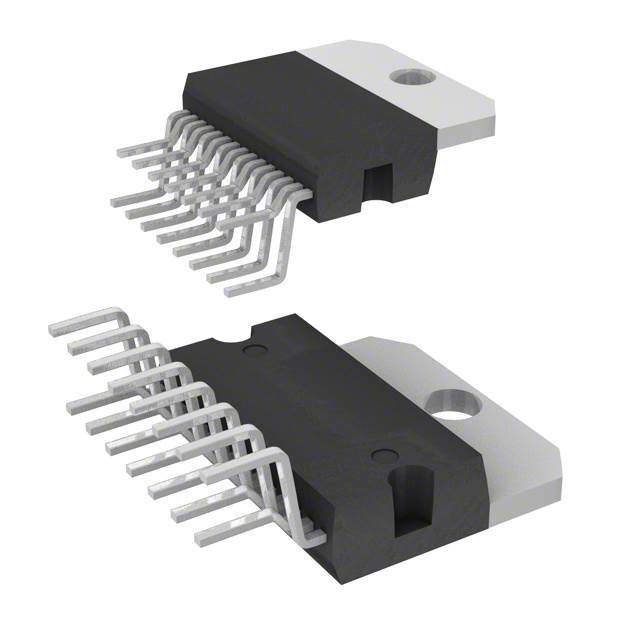

Image is for your reference only,please check specifications for details
- TDA7375AV - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC150751882
-
Category:Audio Amplifier IC
-
Package:Multiwatt-15
-
Datasheet:Datasheet 3D Model
-
Description:Audio Amp Speaker 1CH Mono/2CH Stereo/4CH Stereo 25W Class-AB 15Pin(15+Tab) MULTIWATT V Tube
-
Stock Locations:
-
Availability:259 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description
- The TDA7375AV is a technology class AB car radio amplifier able to work either in dual bridge or
- quad single ended configuration. The exclusive fully complementary structure of the output stage and the internally fixed gain guarantee the highest possible power performances with extremely reduced component count.
TDA7375AV Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 15 Pin |
| Case/Package | Multiwatt-15 |
| Supply Voltage (DC) | 18.0V (max) |
| Output Voltage | 150 mV |
| Output Current | 4500 mA |
| Supply Current | 4.50 A |
| Power Dissipation | 36000 mW |
| Quiescent Current | 150 mA |
| Output Power | 43 W |
| Gain | 26 dB |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 8V ~ 18V |
| Show | |
| Size-Length | 20.2 mm |
| Size-Width | 5 mm |
| Size-Height | 10.7 mm |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
