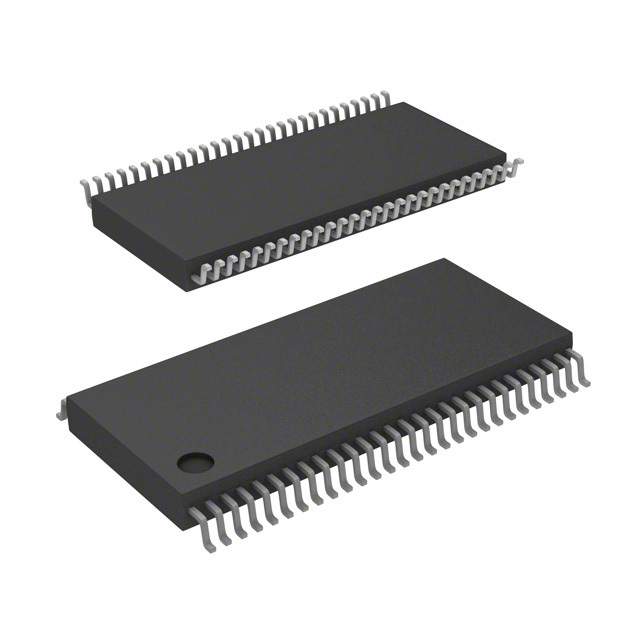

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The DS90CR287MTD is a rising edge data strobe Channel Link Transmitter converts 28 bits of LVCMOS/LVTTL data into four LVDS (low voltage differential signalling) data streams. A phase-locked transmit clock is transmitted in parallel with the data streams over a fifth LVDS link. Every cycle of the transmit clock 28 bits of input data are sampled and transmitted. This chipset is an ideal means to solve EMI and cable size problems associated with wide, high-speed TTL interfaces.
- Low power consumption
- Narrow bus reduces cable size
- PLL requires no external components
- Serializer function
- 20 to 85MHz Shift clock support
- ±1V Common-mode range (around +1.2V)
- 345mV Typical Swing LVDS devices for low EMI
DS90CR287MTD Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 56 Pin |
| Case/Package | TSSOP-56 |
| Supply Voltage (DC) | 3.00V (min) |
| Output Voltage | ≤3.30 V |
| Number of Positions | 56 Position |
| Power Dissipation | 1.63 W |
| Power Consumption | 139 W |
| Output Voltage (Max) | 450 mV |
| Input Current (Min) | 15 μA |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -10 ℃ |
| Power Dissipation (Max) | 1630 mW |
| Supply Voltage | 3V ~ 3.6V |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 3 V |
| Show | |
| Size-Length | 14 mm |
| Size-Width | 6.1 mm |
| Size-Height | 0.9 mm |
| Operating Temperature | -10℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| REACH SVHC Compliance | No SVHC |
