2450AT45A100E - Johanson Technology
Manufacturer:
Johanson Technology
ManyChip's Part#:
MC12875467
Category:
RF Antenna
Package:
9.5mm x 2mm x 1.2mm
Datasheet:
Datasheet 3D Model
Description:

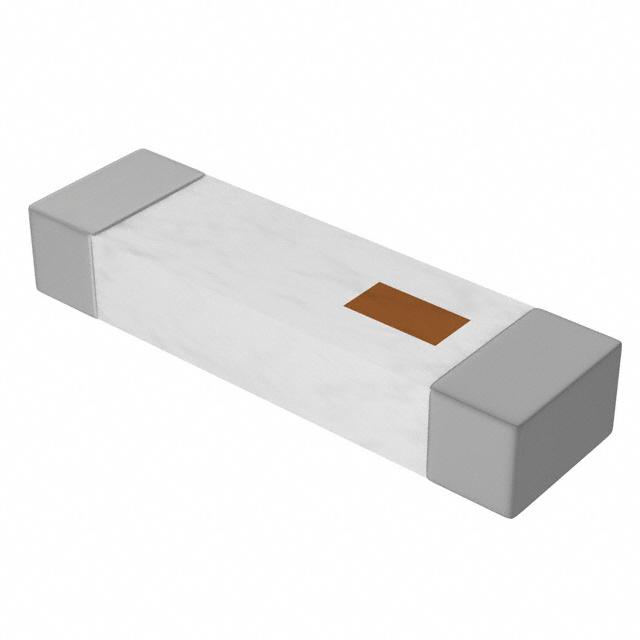

ANTENNA, CERAMIC, 2.45GHz; Bandwidth: 100MHz; Frequency: 2.45GHz; Gain: 1dB; Impedance: 50Ω
Stock Locations:
Availability:
1,406 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.39

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 2450AT45A100E is a 2.4GHz to 2.5GHz miniature RF Ceramic Chip Antenna is made using Low Temperature Cofired Ceramic (LTCC) technology which has the ability to embed low and high dielectric constants inside antenna. This enables them to have great detuning resilience and extreme temperature stability behaviour. It offers SMD manufacturability in standard or small form-factor designs/applications provide great reliability and versatility while maintaining industry demanding performance. This antenna is easy to tune to any unique PCB environment.
Smallest form factor
2X to 3X Higher dielectric constant than any FR4, PCB or standard plastics
125C Rating capable
3dBi Typical (XZ-V) peak gain
3W Maximum input power
50R Impedance

Show

2450AT45A100E Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	9.5mm x 2mm x 1.2mm
Frequency	2.45 GHz
Power Rating	3 W
Bandwidth	100 MHz
Input Impedance	50 Ω
Gain	2.2 dBi
Input Power	3 W
Input Power (Max)	3000 mW
Input Power (Max)	3 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	3 W
	Show
Size-Length	9.5 mm
Size-Width	2 mm
Size-Height	1.2 mm
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
ECCN Code	EAR99
