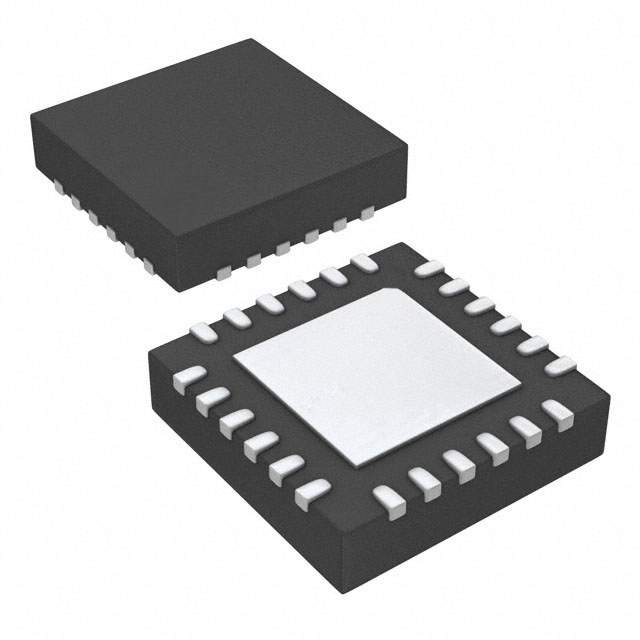

Image is for your reference only,please check specifications for details

HMC129LC4 - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC85306950
Category:
RF Module
Package:
TFQFN-24
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES HMC129LC4 RF Double Balanced Mixer IC, RF/LO Range 4GHz to 8GHz, HQFN-24
Stock Locations:
Availability:
8 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 49.8

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The HMC129LC4 is a general purpose double balanced MMIC Mixer which can be used as an up-converter or down-converter in the 4 to 8GHz band. The HMC129LC4 is ideally suited for applications where small size, no DC bias and consistent IC performance are required. This mixer can operate over a wide LO drive input of +9 to +15dBm. It performs equally well as a Bi-Phase modulator or demodulator. The HMC129LC4 eliminates the need for wire bonding, allowing use of surface mount manufacturing techniques.
7dB Conversion loss
40dB LO to RF and IF isolation
17dBm Input IP3

Show

HMC129LC4 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	24 Pin
Case/Package	TFQFN-24
Frequency	4GHz ~ 8GHz
Number of Positions	24 Position
Power Dissipation	124 mW
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	124 mW
	Show
Size-Height	1.02 mm
Product Lifecycle Status	End of Life
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
