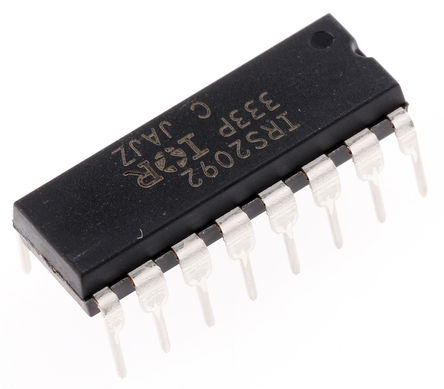

IRS2092PBF - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC52154667
Category:
Audio Amplifier IC
Package:
DIP-16
Datasheet:
Datasheet 3D Model
Description:
INFINEON IRS2092PBF Audio Power Amplifier, D, 1Channel, 500W, 10V to 18V, DIP, 16Pins
Stock Locations:
Availability:
887 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.5

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The IRS2092PBF is a high voltage high performance class-D Audio Amplifier Driver with open elements of PWM modulator section allows flexible PWM topology implementation. In conjunction with two external MOSFET and a few external components, a complete class-D audio amplifier with protection can be realized. Proprietary noise isolation technology allows high current gate drive stage and high speed low noise error amplifier reside on a single small silicon die.
Floating inputs enable easy half bridge implementation
Programmable bidirectional over-current protection with self-reset function
Programmable preset dead time for improved THD performances
Start and stop click noise reduction
High noise immunity
±100V ratings deliver up to 500W in output power
ESD sensitive device, take proper precaution while handling the device.

Show

IRS2092PBF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	DIP-16
Number of Channels	1 Channel
Number of Positions	16 Position
Power Dissipation	1600 mW
Gain Bandwidth Product	9 MHz
Output Power	500 W
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Minimum CMRR Range	60 dB
Supply Voltage	10V ~ 18V
	Show
Size-Length	21.33 mm
Size-Width	7.11 mm
Size-Height	4.94 mm
Operating Temperature	-40℃ ~ 125℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
