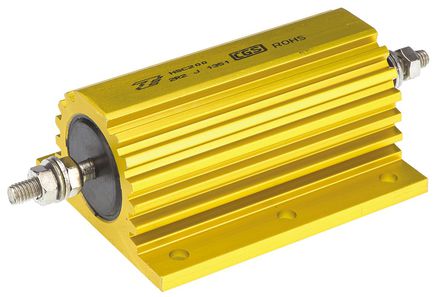

Image is for your reference only,please check specifications for details

HSC2002R2J - TE Connectivity
Manufacturer:
TE Connectivity
ManyChip's Part#:
MC33790471
Category:
Resistor
Package:
Axial, Box
Datasheet:
Datasheet 3D Model
Description:
Through Hole Wirewound Resistor, HSC Series, 2.2Ω, 200W, 5%, 50ppm/℃
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

For all your nontraditional resistor mounting needs using this HSC2002R2J fixed single-mount resistor from TE Connectivity will get you the proper resistance. This product has a resistance value of 2.2 Ohm. This dependable part has a power rating of 200 W. Its temperature coefficient is ±50 ppm/°C. The HSC2002R2J part has an axial termination style. This device is made with wirewound technology. It has a tolerance of 5%. This product is 143 mm long, 45 mm tall and 73 mm deep.

Show

HSC2002R2J Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Chassis
Number of Pins	2 Pin
Case/Package	Axial, Box
Voltage Rating (DC)	1.90 kV
Voltage Rating (AC)	1.90 kV
Insulation Resistance	10000 mΩ
Capacitance Tolerance	±5 %
Power Rating	200 W
Resistance	2.2 Ω
Resistance Tolerance	±5 %
Operating Temperature (Max)	250 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	1.9 kV
	Show
Size-Length	143 mm
Size-Width	73 mm
Size-Height	45 mm
Lead Length	25 mm
Operating Temperature	-55℃ ~ 200℃
Temperature Coefficient	±50 ppm/℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Not Applicable
ELV Compliant	Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
HTS Code	8533290000
ECCN Code	EAR99
