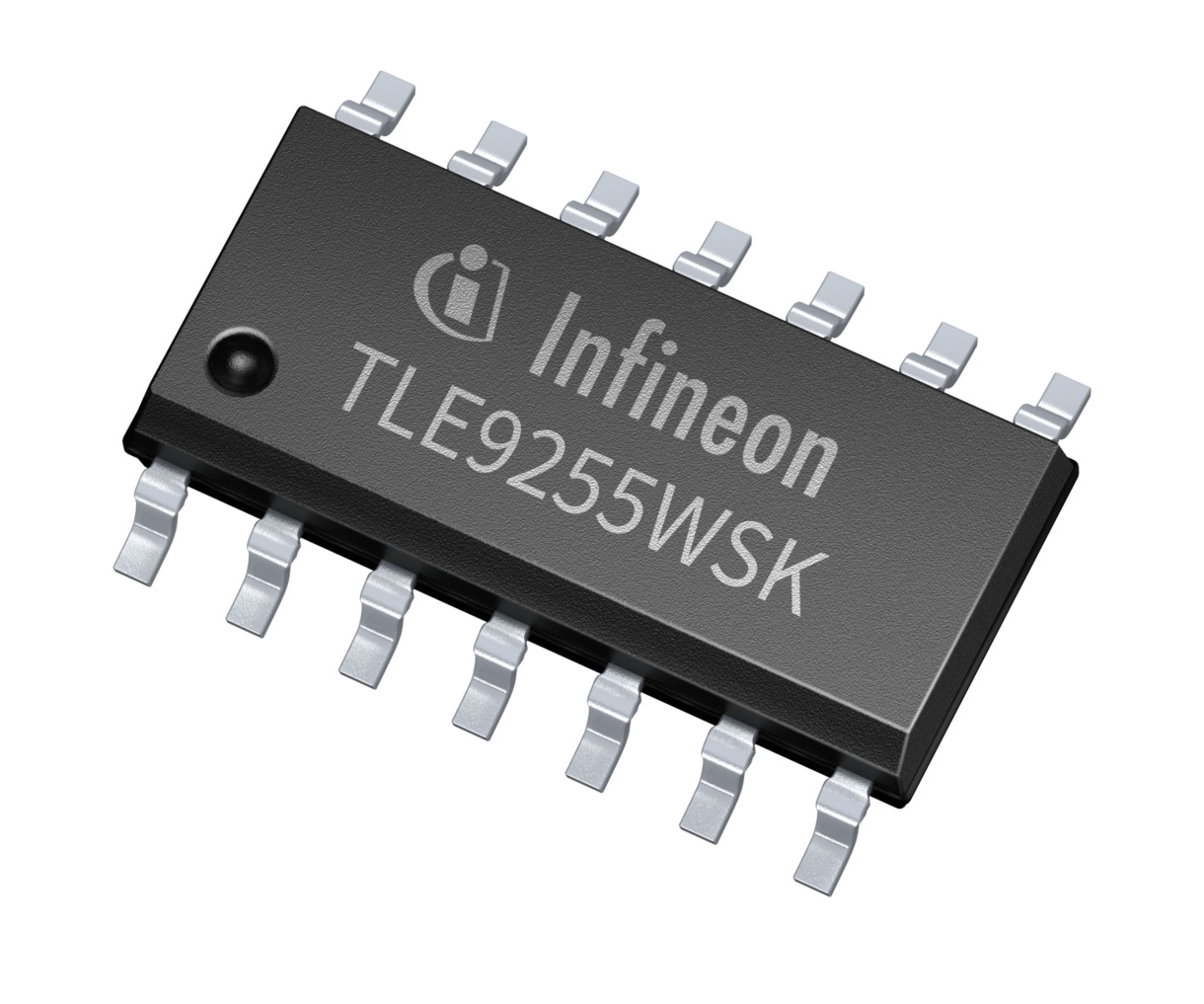

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description:
The TLE9255WSK is part of the latest Infineon CAN transceiver family being fully compliant to the new ISO11898-2 from 2016 and also to the former ISO11898-6. The TLE9255WSK is packaged in a standard DSO-14.
Besides CAN partial networking functions, the transceiver is CAN FD compliant and can drive and receive CAN FD messages up to 2Mbit/s. It can also be used to block the payload of CAN FD messages. This CAN FD tolerant feature allows the usage of microcontrollers in CAN FD networks, which are not CAN FD capable.
The SPI interface of the TLE9255WLC is used to setup the wake-up functions, INH output control, mode control and the undervoltage control of the device. This allows a very flexible usage of the TLE9255WLC in different automotive applications.
Summary of Features:
Fully compatible to ISO 11898-2 (2016)
CAN Partial Networking (CAN PN) and CAN FD up to 2 MBit/s
Wide common mode range for electromagnetic immunity (EMI)
Very low electromagnetic emission (EME)
Excellent ESD robustness, ± 8 kV according to ISO 61000-4-2
Independent supply concept on VCC and VBAT pins
Short circuit proof to GND and to battery
Overtemperature protection
Wake-up frame detection with CAN FD tolerant feature
Local wake-up input
SPI clock frequency up to 4 MHz
Green Product (RoHS compliant)
AEC Qualified
