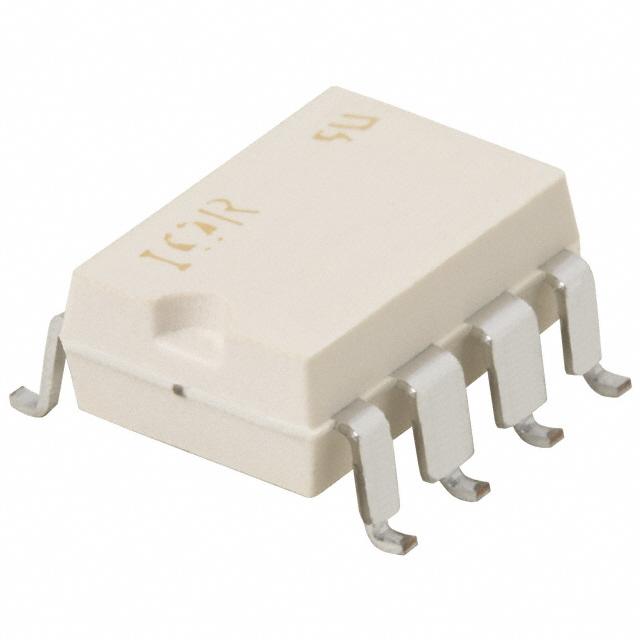

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Solid State SPST-NO (1 Form A) x 2 8-SMD (0.300", 7.62mm)
PVT322S Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SMD-8 |
| Supply Voltage (DC) | 7.00 V |
| Output Voltage | ≤250 V |
| Output Current | ≤170 mA |
| Contacts Type | DPST-NO |
| Load Current | 170 mA |
| Part Family | PVT322S |
| Output Voltage (Max) | 250 V |
| Input Current (Min) | 25 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 1.2 VDC |
| Show | |
| Size-Length | 9.39 mm |
| Size-Width | 6.47 mm |
| Size-Height | 3.93 mm |
| Product Lifecycle Status | Unknown |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
