Description

The HS series from TE Connectivity are aluminium housed power resistors. They are extremely stable, high quality wire wound resistors capable of dissipating high power in a limited space with relatively low surface temperature. The power is rapidly dissipated as heat through the aluminium housing to a specified heatsink. The resistors are made from quality materials for optimum reliability and stability. The HS series aluminium housed power resistors are suitable for general-purpose use, power supplies, power generation and traction industry. It is also used for pulse applications and to supply information for high voltage use and low-ohmic value, alternative mountings and termination type. Typical applications include braking resistor, balancing resistor, capacitor charging & discharging, crowbar, filter, electrical machinery general use and available through distribution.

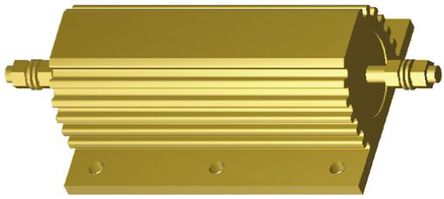

2-1630024-8, HSC250 82R 5%
Resistance value ranges from 0.01ohm to 100Kohm
Power rating range from 5W to 300W and working voltage range from 160V to 2500V
Available in single opposing mounting feet/ one side flange/ two sides flange mounting styles
±10%, ±5%, ±3%, ±2%, ±1%, ±0.5% and ±0.25% tolerance
Proven reliability and versatile product
Low resistance, low inductance and higher voltage versions available
Minimum insulation resistance is 10,000Mohm (dry), 1000Mohm (after moisture test)
Temperature coefficient is 50ppm/°C (below 100R), 30ppm/°C ( above 100R)
High voltage, high power resistor

Show

HSC25082RJ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Chassis
Number of Pins	2 Pin
Case/Package	Axial, Box
Voltage Rating (DC)	2.20 kV
Insulation Resistance	10.0 GΩ
Capacitance Tolerance	±5 %
Power Rating	250 W
Resistance	82 Ω
Resistance Tolerance	±5 %
Voltage Rating	2.5 kV
	Show
Size-Length	163 mm
Size-Width	73 mm
Size-Height	45 mm
Lead Length	27 mm
Operating Temperature	-55℃ ~ 200℃
Temperature Coefficient	±50 ppm/℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ELV Compliant	Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
